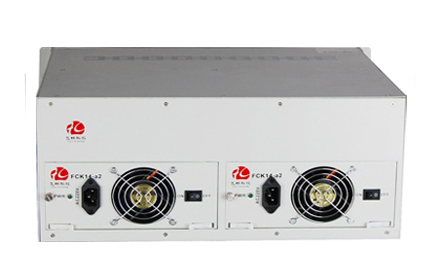

    128* Video Fiber Transceiver (4U Rack)

    Type:FCV-V128T/R Message

    Description:128 * Video Single fiber transmission ，4U Rack ，configure 8* cards ，16 video card

    Product Description
                 128 Integrated multiplexing video optical transmitter / receiver uses digital coding techniques can be 128 video signals through a single-mode fiber to achieve long-range two-way transmission.
                  128 Integrated Video Optical 19-inch rack-mount 4U 17 slot, from 8 to 16 video panels with a CWDM board, every 16 video as a unit, using CWDM coarse wavelength division multiplexing technology, a total of eight wavelengths A total of eight can insert a video interface card. Easy installation and maintenance, suitable for different working environment.
    Functional Properties
    Ø 128 single-channel video optical transceiver for transmission;

    Ø equipment for 4U 19 英寸 17 slot chassis features a total of eight plates, 16 pure video board occupies two slots,

          16 video versatile interface board occupies three slots;

    Ø easy expansion, increasing the board to, easy maintenance, replacement card can be;

    Ø data interface and video interface with lightning protection, lightning reached GB / T17626.5 (IEC61000-4-5) Short circuit

          current wave 8 / 20μs, the peak output voltage 6KV open standards;

    Ø can detect no light when closed, the remote device is powered down or disconnected fiber;
    Ø PAL / NTSC / SECAM compatible with all standard, studio-grade transmission quality;
    Technical Parameters

    u  Video interface

        Video Bandwidth:   5Hz~10Hz
        Rate input & output Level:  1Vp-p
        Sampling Frequency:  16.4M (typical value)
        Signal Impedance:  75 Ω
        Signal Interface:  BNC/PAL/NTSC/SECAM
        Differential Gain (DG):  <1.3 %( typical value)
        Differential Phase (DP):  <1.3° (typical value)
        Signal Noise Ratio (SNR):  63dB

    u  Optical

        Respond Time: <0.5ms
        Switch Signal: 30VDC/0.5

        Ringing voltage：75V
        Ringing frequency：25HZ
        Wave Length：1470,1490,1510,1530,1550,1570,1590和1610nm
        Fiber：Single-mode Fiber 9/125um
        Optical interface：FC 、SC、ST
       Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
       Transmission distance may also be limited by fiber optic bandwidth.

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤5W

    u   Dimension

        Product Size:         443X365X195mm(WXDXH)

        Simple packaging:  560X420X285mm(WXDXH)

        Piece Weight :      8.5KG

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

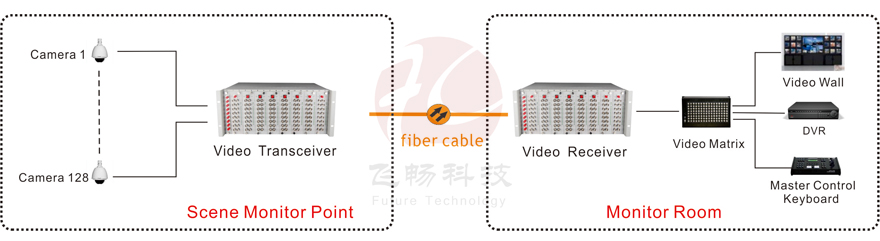

    Application Scheme

    Applications


    DataSheet Download
