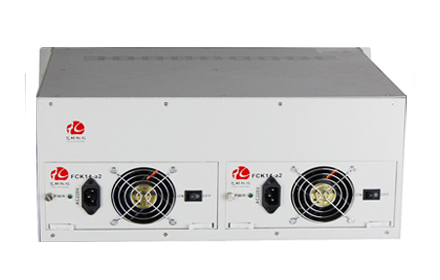

    64* Multi Service Video Fiber Transceiver (4U Rack)

    Type:FCV-V64T/R Message

    Description:64 * Video Single fiber transmission ，4U Rack ，configure 4* cards ，16 video card

    Product Description
                 64-way multi-service video optical transmitter / receiver uses digital coding technology, 64 channels of video signals, data signals, audio signals and digital signals and Ethernet signals through a single-mode fiber to achieve long-range two-way transmission, professional designed to be compatible with Philips, AD, Vicon, Pelco, and other control systems.
                  64 Video Optical Multiservice 19-inch rack-mount 4U 17 slots, each 16 video as a unit, using CWDM coarse wavelength division multiplexing technology, a total of four wavelengths, insert more than four business cards or plain Video Optical 16 video Optical (can be extended to a total of eight video interface card). Easy installation and maintenance, suitable for different working environment.
    Functional Properties
    Ø 64 Optical Multiservice video for single fiber transmission;

    Ø Equipment for 4U 19 英寸 17 slot chassis features a total of four plates, 16 pure video board occupies two slots,

         16 video versatile interface board occupies three slots;

    Ø Easy expansion, increasing the board to, easy maintenance, replacement card can be;

    Ø Data interface and video interface with lightning protection, lightning reached GB / T17626.5 (IEC61000-4-5)

          Short circuit current wave 8 / 20μs, the peak output voltage 6KV open standards;

    Ø No light can be detected when closed, the remote device is powered down or disconnected fiber;
    Ø PAL / NTSC / SECAM compatible with all standard, studio-grade transmission quality;
    Ø Data, Ethernet, audio, switch, telephones, CAN bus interfaces optional;
    Ø Providing bi-directional asynchronous data (forward and reverse);
    Ø Asynchronous data transfer rate 110-115.200Kbps above, asynchronous data for RS232-RS485-RS422- Manchester code;
    Technical Parameters

    u  Video interface

        Video Bandwidth:   5Hz~10Hz
        Rate input & output Level:  1Vp-p
        Sampling Frequency:  16.4M (typical value)
        Signal Impedance:  75 Ω
        Signal Interface:  BNC/PAL/NTSC/SECAM
        Differential Gain (DG):  <1.3 %( typical value)
        Differential Phase (DP):  <1.3° (typical value)
        Signal Noise Ratio (SNR):  63dB

    u   Date interface

        Data Interface:  RS-232、RS-422、RS-485、TTL
        Data Mode:  NRZ、Manchester、Bi-phase
        Data Rate:  110bps-115.200Kbps
        Interface Port:  RJ45

    u   Audio

        Audio input & output Level: 0.5-4Vp-p
        Audio input & output impedance: 600Ω (balance / imbalance)
        Audio Bandwidth: 20Hz~20KHz
        Nonlinear distortion coefficient: < 1 %
        Audio signal-to-noise ratio (weighted): S/N>85dB

        Interface Port: RJ45/RCA

    u  Ethernet interface(100/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

       MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u  Switch

        Respond Time: <0.5ms
        Switch Signal: 30VDC/0.5A

    u  Optical

        Respond Time: <0.5ms
        Switch Signal: 30VDC/0.5

        Ringing voltage：75V
        Ringing frequency：25HZ
        Wave Length：1470,1490,1510,1530,1550,1570,1590和1610nm
        Fiber：Single-mode Fiber 9/125um
        Optical interface：FC 、SC、ST
       Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
       Transmission distance may also be limited by fiber optic bandwidth.
    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤5W

    u   Dimension

        Product Size:         443X365X195mm(WXDXH)

        Simple packaging:  560X420X285mm(WXDXH)

        Piece Weight :      8.5KG

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

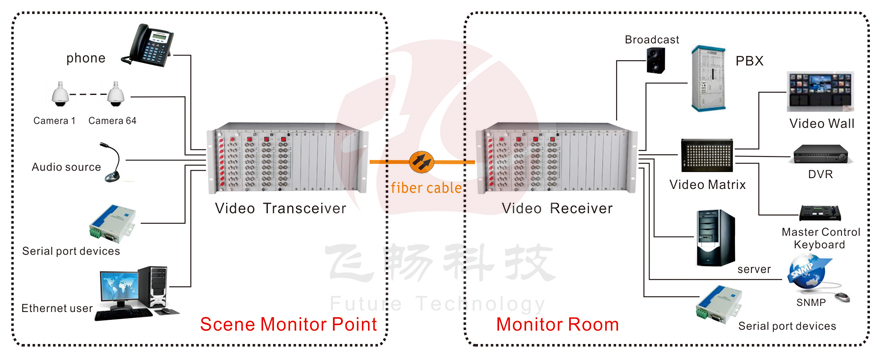

    Application Scheme
