    Industrial grade 4FE Fiber Media Converter

    Type:FCM-GF4 Message

    Description:Industrial grade 4FE Fiber Media Converter, with Console management,Working temperature -40 ℃ ~ + 85 ℃

    Product Description
                 This series of products are industrial grade 4 port 100Base-T to 100Base-FX conversion is mainly used for the optical fiber, optical fiber network distance (20/40/60/80/120 km) transmission. This product offers 1 megabytes of light; 4 Fast Ethernet port, and share the hundreds of megabytes of bandwidth, the bandwidth of each road can be set by Console (Ethernet interface can support VLAN divided into exchange,), namely Logic Isolation; 1 Console port. Has the alarm function, the operation is stable and reliable, low power consumption, high integration, small size.
    Functional Properties
    Ø Industrial Ethernet series, designed for harsh harsh industrial environments

    Ø device provides four Fast Ethernet ports, and share hundreds of megabytes of bandwidth, the bandwidth of each channel can be set

           through the Console port (Ethernet interface for switching port can support VLAN classification);

    Ø electrical connector (RJ45 connector) to support 10 / 100M adaptive, full / half duplex mode, MDI / MDI-X auto-detect

    Ø optical interface supports dual-fiber multi-mode, dual-fiber single-mode, single-mode single fiber three kinds of optical fiber transmission

          modes, SC / ST / FC interface, optional

    Ø VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches used to support up to

         1916-byte Ethernet packets;

    Ø capable of VLAN classification based PORT, this method does not affect the division of the remote device; 802.1Q VLAN division,

          then this, the remote interface  can be divided into the same VALN; Ethernet port supports priority setting;

    Ø support a wide range of AC and DC input
    Ø support internal isolation, redundant dual power inputs
    Ø Power Support overload protection, anti-reverse protection
    Ø meet industry four electromagnetic compatibility requirements
    Ø Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.
    Ø fanless cooling efficiency, reduce repair time
    Ø IP40 enclosure protection rating, can withstand the test of harsh environments

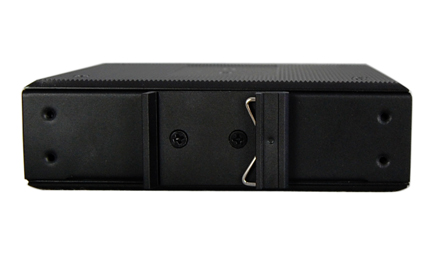

    Ø rail or wall mounting
    Ø wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃
    Ø All models are tested by 100% roast machine, Warranty: 5 years
    Technical Parameters

    u  Fiber

             Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  Ethernet interface(100/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

       MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u   Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

    u   Dimension

       Product size:   133 X120 X40mm(WXDXH)

       Simple packaging: 295X225X84mm( WXDXH)

       Piece weight:  0.685KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

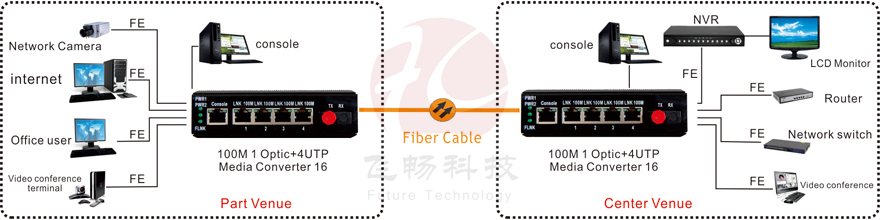

    Application Scheme

    Applications
