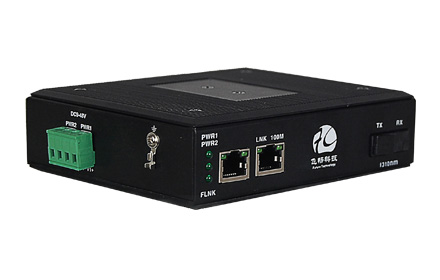

    Industrial grade FE Fiber Media Converter

    Type:FCM-GF1 Message

    Description:Industrial grade FE Fiber Media Converter,Working temperature -40 ℃ ~ + 85 ℃,IP40 enclosure protection rating。

    Product Description
       This series of products are industrial rail type one port 100Base-T to 100Base-FX conversion is mainly used for the optical fiber, optical fiber network distance (20/40/60/80/120 km) transmission. This product offers 100BASE-FX, one channel Fast Ethernet port, Has the alarm function, the operation is stable and reliable, low power consumption, high integration, small size.
    Functional Properties
    Ø Industrial Ethernet series, designed for harsh harsh industrial environments;
    Ø Electrical connector (RJ45 connector) to support 10 / 100M adaptive, full / half duplex mode, MDI / MDI-X auto-detect;

    Ø Optical interface supports dual-fiber multi-mode, dual-fiber single-mode, single-mode single fiber three kinds of optical fiber transmission

          modes, SC / ST / FC interface, optional;

    Ø VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches used to support up to

         1916-byte Ethernet packets;

    Ø Support a wide range of AC and DC input;
    Ø Power Support overload protection, anti-reverse protection;
    Ø Meet industry four electromagnetic compatibility requirements;
    Ø Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.
    Ø Fanless cooling efficiency, reduce repair time;
    Ø IP40 enclosure protection rating, can withstand the test of harsh environments;

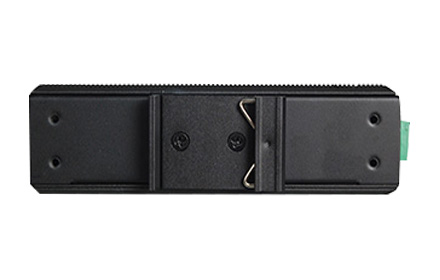

    Ø Rail or wall mounting;
    Ø Wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃;
    Ø All models are tested by 100% roast machine, Warranty: 5 years.
    Technical Parameters

    u  Fiber

        Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

         Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  Ethernet interface(100/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u   Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

    u   Dimension

       Product size:   133 X120 X40mm(WXDXH)

       Simple packaging: 295X225X84mm( WXDXH)

       Piece weight:  0.685KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

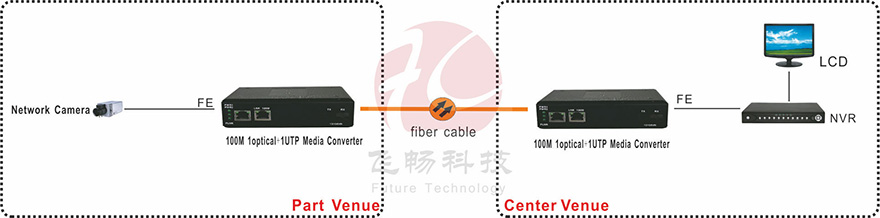

    Application Scheme

    应用方案图
