    8 *Video+2*GE Video Fiber Transceiver

    Type:FCV-V8G2T/R Message

    Description:8 *Video+2*GE Video Fiber Transceiver ，2.5G bi-directional optical module, a non-wavelength-multiplexed two devices Synthesis ，With data、Audio、Talkback、telephones、E1、Ethernet、dry connect……

    Product Description
                   8 video + 1000M Ethernet optical transmitter / receiver uses digital coding technology, 8-channel video signal, 2 10/100 / 1000Base-T twisted pair signals, data signals, audio signals and digital signals through a single-mode fiber to achieve long-range two-way transmission, professional designed to be compatible with Philips, AD, Vicon, Pelco, and other control systems. Video multi-multiplexed optical transmitter / receiver optical module and the core circuit are made of imported components, high stability, all the optical and electrical interfaces are international standards, adjustment-free installation for different working environment.
    Functional Properties
    Ø All-digital fiber optic transmission platform, multi-service platform with flexible configuration
    Ø can provide general-desktop mini desktop, centralized card rack in many ways
    Ø Ethernet line with international standards: IEEE 802.3ab 1000Base-T
    Ø 1000M Ethernet wire-speed rate support
    Ø VLAN support the transmission of long packets;
    Ø With broadcast storm protection, balanced flow, isolation and conflict error detection functions
    Ø 10Mbps / 100Mbps / 1000Mbps automatically adapt to the electrical port MDI / MDI-X Adaptive without manual adjustment
    Ø data interface and video interface provides three mine-protected, by ITU-T K.21 (10/700 μS), common mode: 6KV, impedance (40 Ω) test
    Ø single fiber transmission, optional dual fiber
    Ø can receive no light is detected, the remote device is powered down or disconnected fiber
    Ø PAL / NTSC / SECAM compatible with all standard, studio-grade transmission quality
    Ø asynchronous data transfer rate than 110-115.200Kbps
    Ø asynchronous data available for RS232 / RS485 / RS422 / Manchester code
    Technical Parameters

    u  Video interface

        Video Bandwidth:   5Hz~10Hz
        Rate input & output Level:  1Vp-p
        Sampling Frequency:  16.4M (typical value)
        Signal Impedance:  75 Ω
        Signal Interface:  BNC/PAL/NTSC/SECAM
        Differential Gain (DG):  <1.3 %( typical value)
        Differential Phase (DP):  <1.3° (typical value)
        Signal Noise Ratio (SNR):  63dB

    u   Date interface

        Data Interface:  RS-232、RS-422、RS-485、TTL
        Data Mode:  NRZ、Manchester、Bi-phase
        Data Rate:  110bps-115.200Kbps
        Interface Port:  RJ45

    u   Audio

        Audio input & output Level: 0.5-4Vp-p
        Audio input & output impedance: 600Ω (balance / imbalance)
        Audio Bandwidth: 20Hz~20KHz
        Nonlinear distortion coefficient: < 1 %
        Audio signal-to-noise ratio (weighted): S/N>85dB

        Interface Port: RJ45/RCA

    u  Ethernet interface(100/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

       MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u  Switch

        Respond Time: <0.5ms
        Switch Signal: 30VDC/0.5A

    u  Optical

        Respond Time: <0.5ms
        Switch Signal: 30VDC/0.5

        Ringing voltage：75V
        Ringing frequency：25HZ
        Wave Length：1470,1490,1510,1530,1550,1570,1590和1610nm
        Fiber：Single-mode Fiber 9/125um
        Optical interface：FC 、SC、ST
       Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
       Transmission distance may also be limited by fiber optic bandwidth.
    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤5W

    u   Dimension

        Product Size:         443X110X44mm(WXDXH)

        Piece Weight :      1.5KG

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

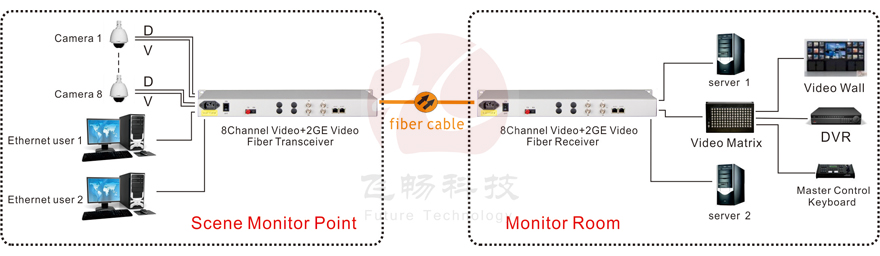

    Application Scheme

    Applications
