    24*FE+2*1000 base-S/LX Ethernet Switch

    Type:FC2M-F24v Message

    Description:24*FE+2*1000 base-S/LX Ethernet Switch,Console,VLAN Logic Isolation

    Product Description
                   FC-SW24 is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media which are 24*10/100base-T UTP and 2*1000base-S/LX. It mainly used for fiber network far distance (20/40/60/80/100km) transmission supports 10/100/1000M or 10M100M1000M transmission rate. Fiber port and UTP can work through 100M or 1000M rate.
    Functional Properties

    Ø Ethernet UTP/STP interface automatically adapt to 10/100Mbps environment upgrade network easily;

    Ø Device provides 24*FE UTP/STP interface and 2*1000base-S/LX interface with SFP fiber module.

    Ø Support full-duplex and half duplex network communication with auto-negotiation capability;

    Ø The max package length up to 1632 Bytes which can match with the switch product complied with IEEE802.10 protocol

    Ø   Support UTP cross connection switch optional convenient for system debugging and setup

    Ø Device provides Console port supports Terminal control device

    Ø Ethernet port priority setting

    Ø AC 220V DC-48V DC24V can be optional and DC-48V/DC24V

         power has polarity automatic detectionfunction

         you can install the device without differentiation between positive and negative polarity.



    Technical Parameters

     u  Ethernet UTP Interface

        Interface rate:              10/100 M half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45 support Auto-MDIX

    u   Optical Ethernet interface

        Wave Length:          1310nm 1550nm

        Interface rate:              100 M half/full duplex

        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  FC/SC

        Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

       Transmission distance may also be limited by fiber optic bandwidth.

    u   Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size :       485X138X45mm( WX DXH))

        Simple packaging : 522X198 X82mm ( WX DXH)

       Piece Weight: 3.3KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

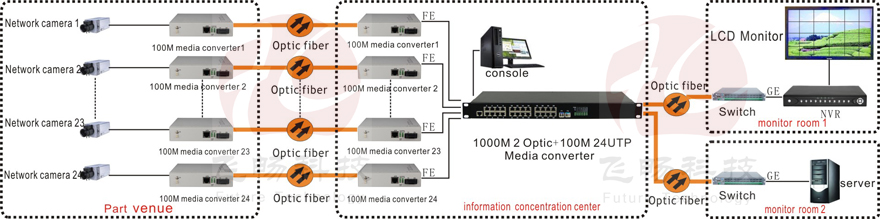

    Application Scheme

    Applications
