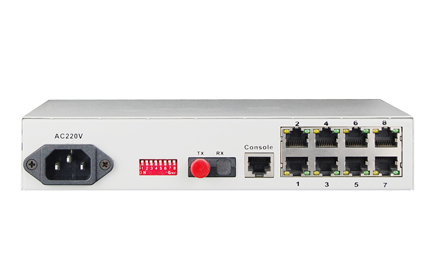

    8FE Configurable VLAN Fiber Media Converter

    Type:FCM-F8C1 Message

    Description:8 * FE+1 * 100base-S/LX Ethernet Switch,Console,VLAN

    Product Description
                 The device supports a maximum multimode fiber optic cable distance of 20/40/60/80/120 kilometers providing a simple solution for connecting 10base-T/100base-Tx Ethernet networks to remote locationss support the 10/M/100M/Ethernet transmission using SC-terminated multimode fiber while delivering solid network performance and scalability. Support optical interface and Ethernet interface.
    Functional Properties

    Ø Automatically adapt to 10Mbps and 100Mbps environment upgrade network easily;

    Ø   Device provides 4 Ethernet UTP 1 Ethernet optical port

    Ø Support full-duplex and half duplex network communication with auto-negotiation capability;

    Ø   The Ethernet interface supports jumbo frames (1916bit) which can match with the switch product complied with IEEE802.10 protocol

    Ø   Support UTP cross connection switch optional convenient for system debugging and setup

    Ø   Division of VLAN base PORT this method does not affect the remote device

    Ø   802.1Q VLAN Division at this time the local and the remote interface can be divided into the same VALN

    Ø   Device provides Console port supports Terminal control device

    Ø   Ethernet port priority setting

    Ø   Support SNMP Network Management





    Technical Parameters

     u  Ethernet UTP Interface

        Interface rate:              10/100 M half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45 support Auto-MDIX

    u   Optical Ethernet interface

        Wave Length:          1310nm 1550nm

        Interface rate:              100 M half/full duplex

        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  FC/SC

        Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

       Transmission distance may also be limited by fiber optic bandwidth.

    u   Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size :       216X140X31mm( WX DXH))

        Simple packaging : 274X193 X84mm ( WX DXH)

       Piece Weight: 1.8KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)
