    Products center

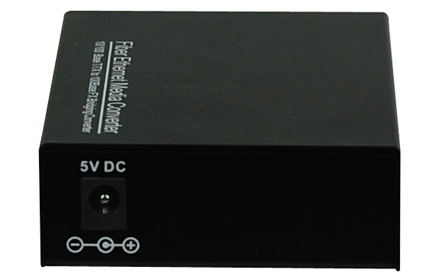

    GE Fiber Media Converter(external power)

    Type:FCMB-G1e Message

    Description:1*GE+1*1000Base-S/LX Ethernet Switch(mini),External AC220 / 5V or DC48V / 5V power adapter

    Product Description
                  This series of products are IEEE802.3 Ethernet media converter, can be achieved between two media 10/100/1000M twisted pair fiber medium converting or extend the network transmission distance of optical fiber network, mainly used for long distance (20/40/60/80/100 km) transmission, the transmission speed of full support for 10/100/1000M.
    Functional Properties
    Ø international standards: IEEE 802.3z 1000Base-SX / LX 802.3ab 1000Base-T;
    Ø monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
    Ø support full and half duplex network communication, with auto-negotiation capability;
    Ø VLAN support the transmission of long packets with protocol support IEEE802.1Q Items matching switch uses;
    Ø Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
    Ø low power consumption. Low heat, stable operation for a long time;
    Ø single fiber and within the external power supply options, expand the user's needs;
    Ø External AC220 / 5V power adapter, can also be an external DC-48V / 5V power adapter;
    Technical Parameters

    u  Fiber

             Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  Ethernet interface(100/100/1000M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

       MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u   Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

    u   Dimension

       Product size:   93 X70 X25 mm(WXDXH)

       Simple packaging: 295X225X84mm( WXDXH)

       Piece weight:  0.5KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

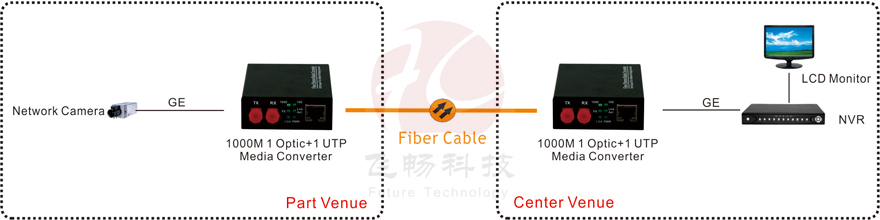

    Application Scheme

    Applications


    DataSheet Download
