    16E1+3FE+1FX 1+1 PDH Multiplexer

    Type:FC2P-E16F3PF1 Message

    Description:16E1+3*100BaseTX Ports+1*100BaseFX PDH multiplexer，order wire phones，19\'\'inch 1U，（Standard telephones interface, non-telephones handles），Console，1+1 Back up Optic fiber

    Product Description
                  The series equipment is in PDH optical fiber transmission, the company developed, based on the special large scale integrated circuit, point to point optical transmission equipment research and development. The device provides 1 ~ 16 E1 interface; 1 ~ 3 10/100M Fast Ethernet interface (Ethernet interface to exchange, wire speed 100M, support VLAN division (logical isolation)); 1 FX optical Ethernet interface; 1 Console; 1 extended service interface can be used as E1 signal, RS232/ (asynchronous RS485/RS422 data, FXO/FXS or EM2/4 line of speech signal, the switch quantity signal, Ethernet signal (bandwidth 2M) such as transmission channel); 1 digital business telephones; the application is flexible, has the alarm function, the operation is stable and reliable, low power consumption, high integration degree.
    Functional Properties
    Ø Based on proprietary integrated circuit;
    Ø 1-16 E1 channel transparent transmission; E1 coding is HDB3, fully compliant with ITU-T G.703, G.823 and G.742 recommendations;

    Ø 1-3 road provides wire-speed electrical interface 100M 100M optical Ethernet and 1 Ethernet, support each negotiation,

           Ethernet bandwidth settings are based on 32K;

    Ø Ethernet full duplex / half duplex adaptive, 10 / 100M adaptive; Ethernet packet size of 1916 bytes;
    Ø optical port transfer rate is 155 / 350Mbps, transmission distance up to 25Km, 40Km, 60Km, 80Km or 120Km;
    Ø with a complete alarm function, you can see the status of the distal end of the device;
    Ø Support E1 loopback test, easy to monitor and manage the equipment;
    Ø System Power AC220V, DC-48V optional.
    Technical Parameters
     u  Fiber

             Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  E1 Interface

        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;

        E1 Impedance:             75Ω (unbalance), 120Ω (balance);

        Jitter tolerance:            In accord with protocol G.742 and G.823

        Allowed Attenuation:   0~6dBm

    u   Date interface

        Data Interface:  RS-232、RS-422、RS-485、TTL
        Data Mode:  NRZ、Manchester、Bi-phase
        Data Rate:  110bps-115.200Kbps
        Interface Port:  RJ45

    u Ethernet interface (10/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    u   Dimension

       Product size:   19 inch 1U   485 X138 X45 mm(WXDXH)

       Simple packaging: 522X198X82mm( WXDXH)

       Piece weight:  3KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

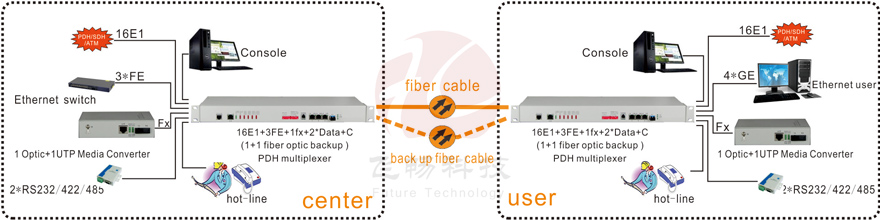

    Application Scheme
