    Products center

    2ETH Physical lsolation Fiber Modem （Bandwidth 2M）

    Type:FCP-F2p Message

    Description:2ETH Physical lsolation fiber transmission, with the Ethernet to E1-E1 fiber optic MODEM- this device into a 3 point network connection

    Product Description
                  This interface converter is based on FPGA. Multiplex 2Channel 10/100Base-T Ethernet interface to 1Channel Optical Fiber interface to provide users with Ethernet access at the rate of 1984K. It is widely used in finance, securities and security departments which need to be provided two different networks, and both on a physical network can be completely separated. For example, the financial system business network, internal office network and business network can't be linked together. This interface multiplexer can solve this problem.

    Functional Properties
    Ø Based on self -copyright  IC
    Ø Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering function
    Ø 2Channel Ethernet rate is 1984Kbps, set up the first channel rate, the second channel Ethernet rate automatic allocations
    Ø The local device can forced the remote device rate follow it
    Ø The Ethernet interface supports jumbo frames (2036 Bytes)
    Ø Ethernet interface supports 10M/100M, half/full duplex auto- Negotiation
    Ø Ethernet interface supports AUTO-MDIX  (crossed line and straightly connected line self-adaptable )
    Ø Have Ethernet monitor self-reset function, the equipment will not dead
    Ø Support SNMP Network Management;
    Ø Can form the structure: 2ETH Physical Isolation+E1 (A)－－-E1 Optical Fiber Modem(B)－－-this device (C)
    Technical Parameters

    u  Fiber

             Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  Ethernet interface(100/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

       MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size:         216X140X31mm(WXDXH)

        Simple packaging:  274X193X84mm(WXDXH)

        Piece Weight :      1.2KG

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

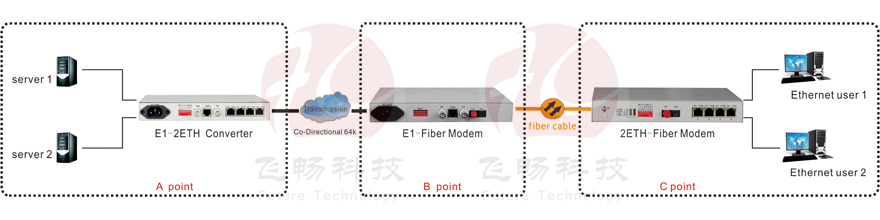

    Application Scheme

    Applications
