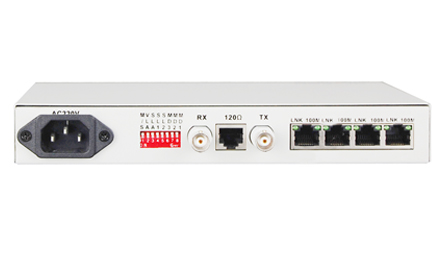

    Unframed E1-4FE Converter

    Type:FCC-E1F4 Message

    Description:1channel unframed E1 - 4FE converter ,With E1 loopback detection function

    Product Description
                 E1-4ETH interface converter is based on FPGA. The device provides the transition between ITU-T G.703 (E1) standard unframed E1 interface and 10/100Base-T interface. It is a high capability, self-adaptable long-distance Ethernet bridge. The product is small and with low cost. It is widely used in connecting between WAN and LAN, monitoring, etc
    Functional Properties
    Ø Based on self -copyright  IC

    Ø   Can realize monitor and control of remote equipment, OAM management data did not take up users’

          timeslot and save E1 bandwidth

    Ø   Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop  return;
    Ø   Have indicator  when the device is power-off or E1 line is broken or lose signal;
    Ø   Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
    Ø   The Ethernet interface supports jumbo frames (1916 Bytes);
    Ø   4Channel 10M/100M Ethernet interface can isolate each other to realize communication independently;

    Ø   Ethernet interface supports10M/100M, half/full duplex auto-Negotiation and AUTO-MDIX (crossed line and  straightly

          connected line self-adaptable );

    Ø   Provide 2 clock types: E1 master clock and E1 line clock;

    Ø   Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote

          Ethernet interface Loop Back(REM)

    Ø   Have pseudo random code test function, easy the installation and maintenance;
    Ø   Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
    Ø   Have Ethernet monitor self-reset function, the equipment will not dead

    Ø   Ethernet interface supports the counters of receiving and transmitting frame, receives wrong frame counters.  E1 interface supports

          the counters of receiving wrong frame;

    Ø   Realize monitor of remote equipment temperature and voltage from local equipment;
    Ø   Support SNMP Network Management;
    Ø   Can form the structure: Ethernet E1 Bridge(A)---E1 Optical Fiber Modem(B)---Ethernet Optical Fiber Modem (C)
    Technical Parameters
    u  E1 Interface

        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;

        E1 Impedance:             75Ω (unbalance), 120Ω (balance);

        Jitter tolerance:            In accord with protocol G.742 and G.823

        Allowed Attenuation:   0~6dBm

    u Ethernet interface (10/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u   Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size :       216X140X31mm( WX DXH))

        Simple packaging : 274X193 X84mm ( WX DXH)

        Piece Weight: 1.2KG

    u  Working environment

        Working temperature: -10°C ~ 50°C

        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

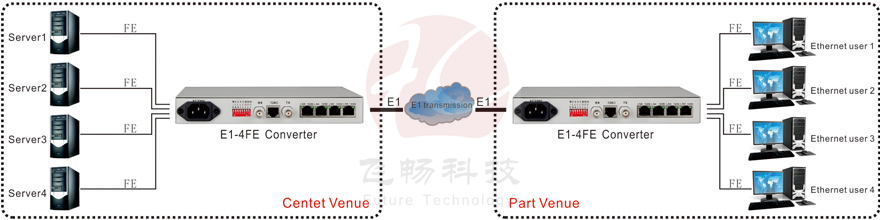

    Application Scheme

    Applications


    DataSheet Download
