    8E1 to 3FE+100Base-FX Converter

    Type:FCCM-E8F3 Message

    Description:8E1 (75/120 ohm) The optical Ethernet interface converter uses reverse multiplexing technology to bundle multiple E1 circuits for transmitting Ethernet data of 3-way Ethernet and 1-channel 100BASE-FX. 1-8 E1 channel to Ethernet interface be

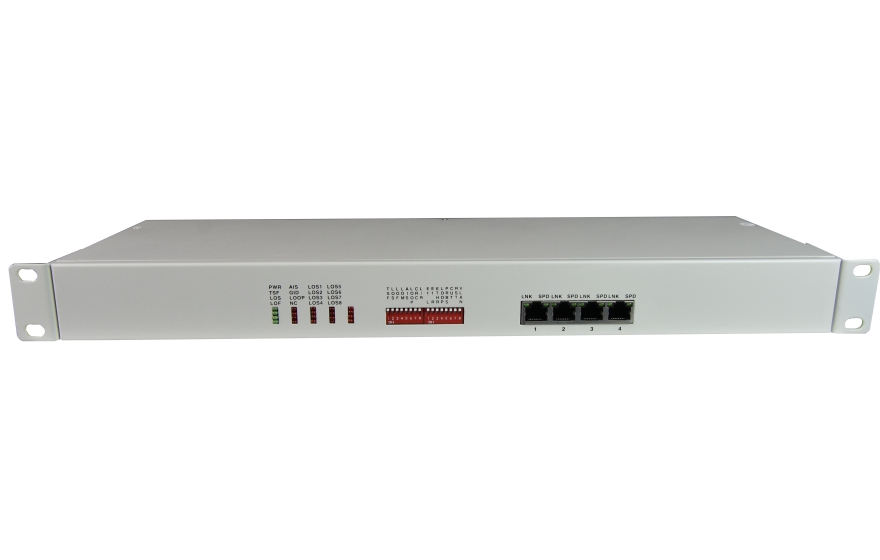

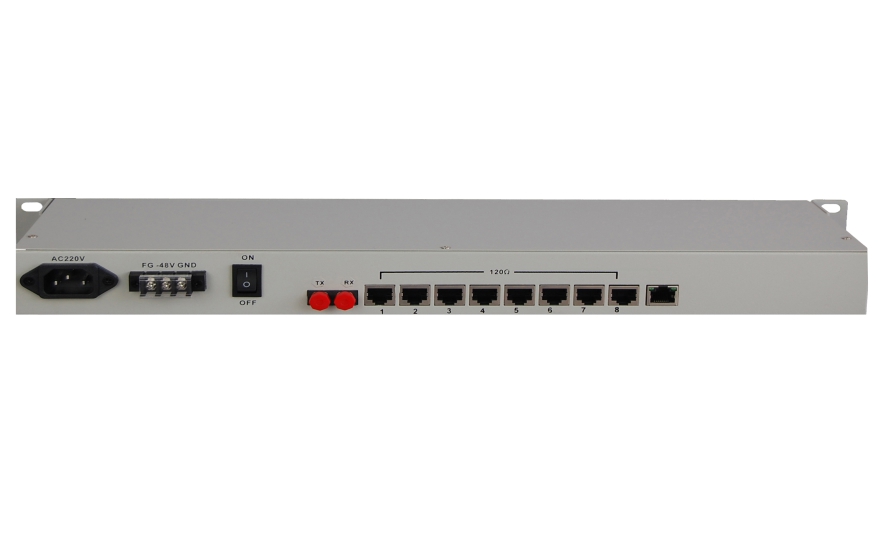

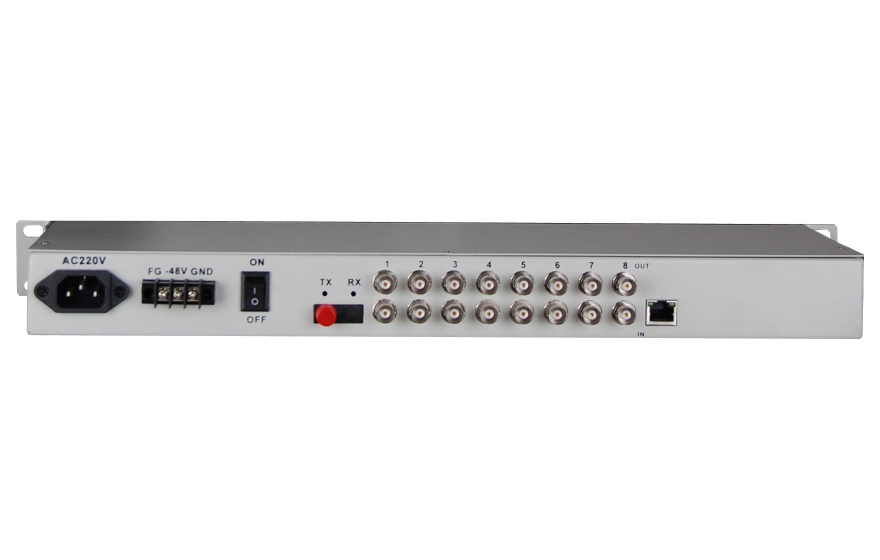

    Product Description
      8E1 (75/120 ohm) The optical Ethernet interface converter uses reverse multiplexing technology to bundle multiple E1 circuits for transmitting Ethernet data of 3-way Ethernet and 1-channel 100BASE-FX. 1-8 E1 channel to Ethernet interface between the conversion, to achieve E1 channel and Ethernet interconnection. The Ethernet package is available in GFP and supports LCAS and LAPS.
      The device supports flexible configuration of 1 to 8 E1 (75/120 ohms) channels, automatically detects the number of E1 and selects the available E1, and allows a certain transmission delay between the E1 circuits. Single line rate is 1984Kbit / s, 8-way bandwidth of up to 15872Kbit / s.
    Functional Properties
    ◆  Based on independent intellectual property rights of integrated circuits;
    ◆  To achieve the Ethernet data in 1 to 8 E1  in the transparent transmission;
    ◆  Can achieve the local, remote device reset operation;
    ◆  4-way E1 line, any two between the maximum delay difference of up to 220ms; when the delay difference is over, will have a delay difference overrun alarm, while business interruption;
    ◆  Ethernet interface 100BASE-FX, support VLAN protocol;
    ◆  Built-in dynamic Ethernet MAC address list (4096), with local data frame filtering;
    ◆  Single E1 line rate is 1984Kbit / s, 8-way bandwidth of up to 15872Kbit / s.
    ◆  Optional local timing and tracking E1 line timing mode, E1 line timing source can automatically switch according to the signal quality. Such as the system E1 line timing source for the first E1;
    ◆  Compliant with ITU-T standard protocol, GFP-F package recommendations G.7041, VCAT virtual concatenation and LCAS link capacity adjustment method Recommendation G.7042, Ethernet to nxE1 mapping recommendations G.7043, Ethernet to single E1 mapping Recommendation G.8040 ;
    ◆  E1 interface conforms to ITU-T G.703, G.704 and G.823, does not support the use of signaling time slots;
    ◆  E1 interface module contains built-in clock recovery circuit and HDB3 codec circuit;
    ◆  Equipment work to support the E1 channel hot swap, and automatically detect the effective E1 channel, the middle will not interrupt the data transmission;
    ◆  Support 1 to 4 E1 flexible configuration, automatically reset the number of E1 and delay and select the available E1;

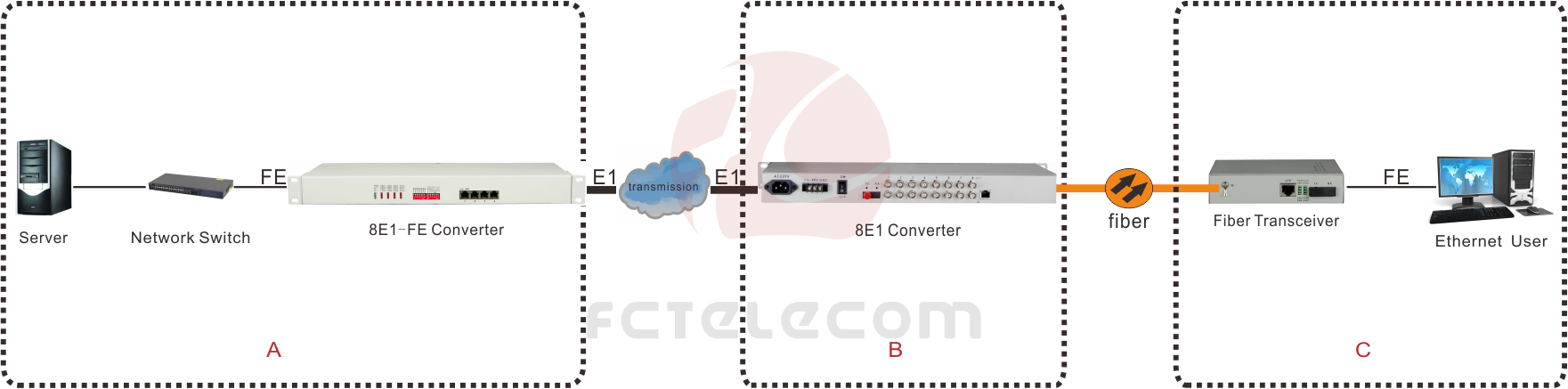

    ◆  Can be composed of Ethernet E1 bridge (A) --- optical Ethernet E1 bridge (B) --- Ethernet fiber optic transceivers (C) topology, can be managed in the A side to the B and C points;
    Technical Parameters

    ◆   Fiber

             Multi-mode Fiber

        50/125um 62.5/125um

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)



        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    ◆   FXS phones Interface

        Ring voltage: 75V

        Ring frequency: 25HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    ◆   FXO Switch Interface

        Ring detect voltage: 35V

        Ring detection frequency: 17HZ-60HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

    ◆   EM 2/4 Line

        AD: 0dB

        DA: -3.5dB

        Two/Four-line Impedance: 600 Ohm

        Return loss: 20 dB

    ◆   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    ◆   Dimension

        Product Size:    Mini Type    216X140X31mm(WXDXH)

                              19inch       485X200X45mm(WXDXH)

         Piece Weight :    mini 1KG / 19inch  2.4KG

    ◆   Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)
