    Products center

    4FE +4*100base-FX to 1000base-X Fiber Media Conve

    Type:FCMG-F4FF4 Message

    Description:This series of products using industrial rail design equipment for point-to-point structure design to achieve in harsh environments data transmission stability reliability and real-time. Work network signal into a chain structure but a

    Product Description
         This series of products using industrial rail design equipment for point-to-point structure design to achieve in harsh environments data transmission stability reliability and real-time. Work network signal into a chain structure but also simplifies the installation of the project reducing the cost of the project.
    This product provides: 1 Gigabit SFP Ethernet port; 4 100 megahertz Ethernet interface 4 SFP Fast Ethernet interface;
    Functional Properties
    ◆ Industrial Ethernet series designed for harsh and harsh industrial environments;
    ◆ The device provides 4-way 100M Ethernet ports 4 SFP Fast Ethernet ports 1 Gigabit optical interface and shared Gigabit bandwidth a Console port;
    ◆ Electrical interface (RJ45 interface) support 10 / 100M adaptive full / half duplex mode MDI/MDI-X automatic detection;
    ◆ SFP optical interface supports multi-mode dual-fiber single-mode dual-fiber single-mode single fiber three fiber transmission mode;
    ◆ With broadcast storm protection balance flow isolation conflict detection error and crash from the reset function suitable for video transmission and other large flow data applications;
    ◆ Transceiver built-in 1MBits high-speed cache to avoid the IP camera in the monitoring of the screen rapidly changing the environment caused by the transmission screen stuck phenomenon;
    ◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch to use the product to support up to 10K bytes of Ethernet packets;
    ◆ With the Console management function (optional) you can set the bandwidth and priority of each Ethernet channel which can be based on PORT and 8 Ethernet port isolation based on 802.1Q.
    ◆ Support a wide range of 9-55V AC and DC power input;
    ◆ Support internal isolation redundant dual power input;
    ◆ Power supply support overload protection anti-reverse protection;
    ◆ Meet the requirements of industrial four electromagnetic compatibility;
    ◆ Super lightning protection: anti-lightning anti-sensor high pressure anti-surge etc .;
    ◆ No fan efficient cooling reduce the repair time;
    ◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

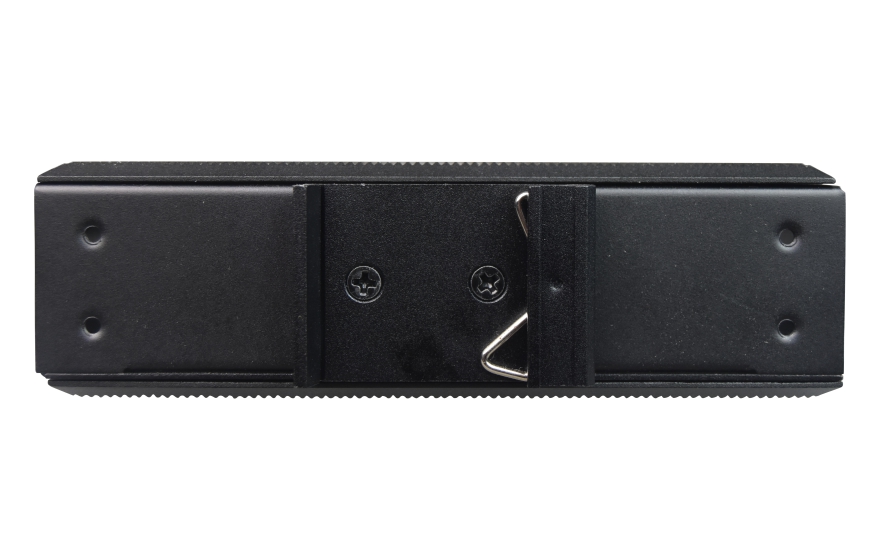

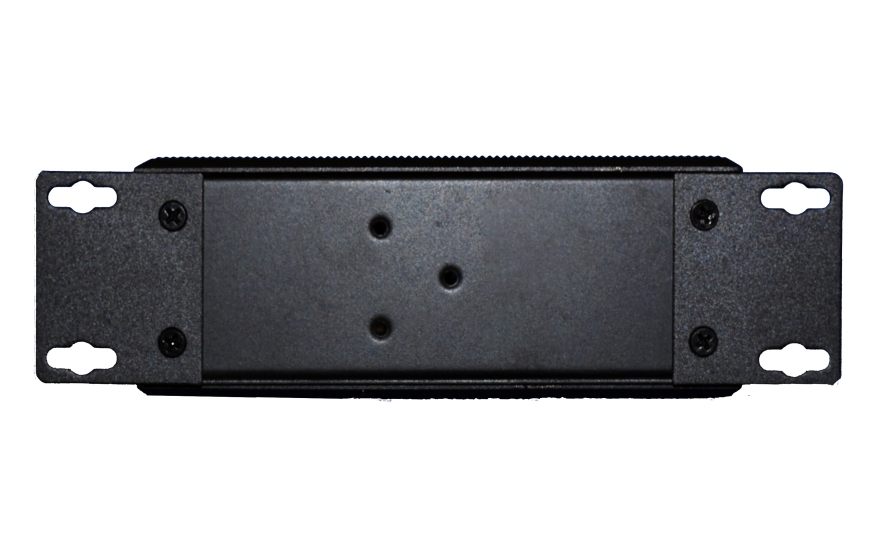

    ◆ Rail or wall mounted;
    ◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
    ◆ All models are tested by 100% roasting machine the warranty period: 5 years;
    Technical Parameters
    ◆  E1 Interface
        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;
        E1 Impedance:             75Ω (unbalance) 120Ω (balance);
        Jitter tolerance:            In accord with protocol G.742 and G.823
        Allowed Attenuation:   0~6dBm
    ◆  Ethernet interface (10/100M)
        Interface rate:              10/100 Mbps half/full duplex auto-negotiation
        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
        MAC Address Capability: 4096
        Connector:                  RJ45 support Auto-MDIX
    ◆  Power
        Power supply: AC180V ~ 260V；DC –48V；DC +24V
        Power consumption: ≤10W
    ◆  Dimension
        Product Size: Mini Type    216X140X31mm(WXDXH)
                Simple packaging:   274X193X84mm(WXDXH)
                Piece Weight :    1.25KG
    ◆  Working environment
        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)
        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)
