    2Optical+2UTP GE Cascade switch

    Type:FCMJG-G4 Message

    Description:This series of products is the industrial grade 4 1000base-T to 2 1000base-X fiber conversion mainly for fiber-optic network remote 20/40/60/80/100 km transmission. This product provides 2 Gigabit optical ports 4 Gigabit Ethernet electric

    Product Description
        This series of products is the industrial grade 4 1000base-T to 2 1000base-X fiber conversion mainly for fiber-optic network remote 20/40/60/80/100 km transmission. This product provides 2 Gigabit optical ports 4 Gigabit Ethernet electrical ports and share Gigabit bandwidth. With perfect alarm function the machine is stable and reliable low power consumption high integration small size. Can be cascaded through two fiber interfaces user-friendly chain networking.
    Functional Properties
    ◆ Industrial Ethernet series designed for harsh and harsh industrial environments
    ◆ The device provides 4 Gigabit Ethernet electrical ports 2 Gigabit optical ports 1 console port (optional);
    ◆ Can be cascaded through two fiber interfaces sharing 1000M bandwidth user-friendly chain networking;
    ◆ Electrical interface (RJ45 interface) support 10/100/1000M adaptive full / half duplex mode MDI / MDI-X automatic detection;
    ◆ Optical interface to support SFP optical module multi-mode dual-fiber single-mode dual-fiber single-mode single fiber three fiber transmission mode;
    ◆ With anti-crash monitoring automatic reset function for high-definition network cameras and other heavy-duty applications;
    ◆ Transceiver built-in 1MBits high-speed cache to avoid the IP camera in the monitoring of the screen rapidly changing the environment caused by the transmission screen stuck phenomenon;
    ◆ Support VLAN packet transmission can support IEEE802.1Q protocol with the switch to match the use of products to support up to 10K bytes of Ethernet packets;
    ◆ Support a wide range of 9-55V AC and DC power input;
    ◆ Support internal isolation redundant dual power input;
    ◆ Power supply support overload protection anti-reverse protection;
    ◆ Meet the requirements of industrial four electromagnetic compatibility;
    ◆ Super lightning protection: anti-lightning anti-sensor high pressure anti-surge etc .;
    ◆ No fan efficient cooling reduce the repair time;
    ◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

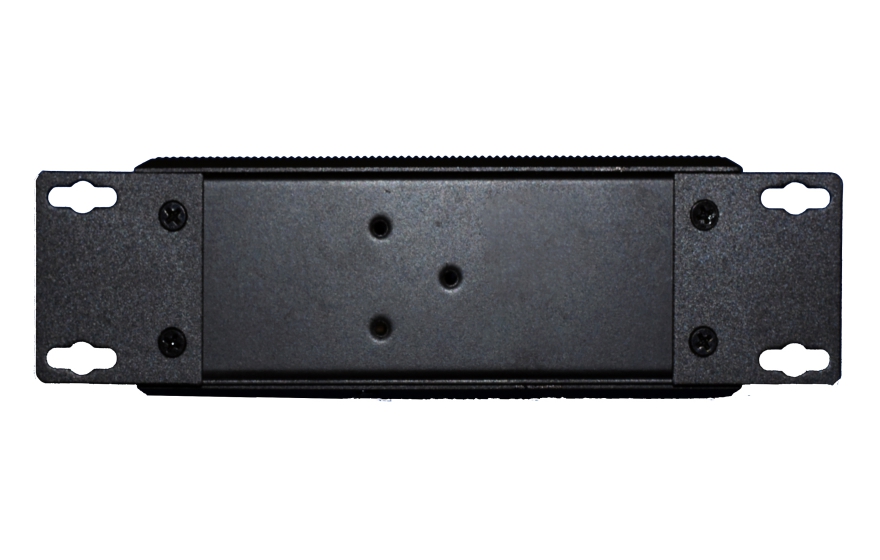

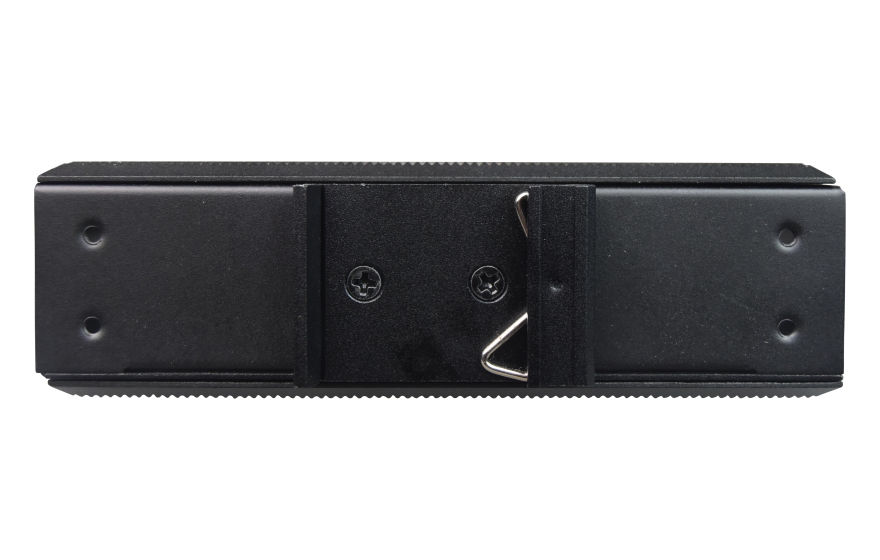

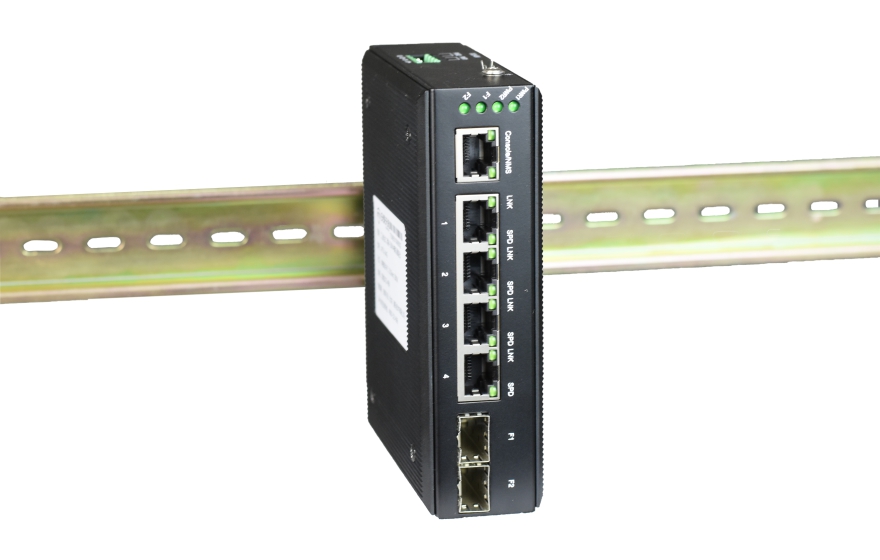

    ◆ Rail or wall mounted;
    ◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
    ◆ All models are tested by 100% roasting machine the warranty period: 5 years;
    Technical Parameters
    ◆  E1 Interface
        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;
        E1 Impedance:             75Ω (unbalance) 120Ω (balance);
        Jitter tolerance:            In accord with protocol G.742 and G.823
        Allowed Attenuation:   0~6dBm
    ◆  Ethernet interface (10/100M)
        Interface rate:              10/100 Mbps half/full duplex auto-negotiation
        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
        MAC Address Capability: 4096
        Connector:                  RJ45 support Auto-MDIX
    ◆  Power
        Power supply: AC180V ~ 260V；DC –48V；DC +24V
        Power consumption: ≤10W
    ◆  Dimension
        Product Size: Mini Type    216X140X31mm(WXDXH)
                Simple packaging:   274X193X84mm(WXDXH)
                Piece Weight :    1.25KG
    ◆  Working environment
        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)
        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

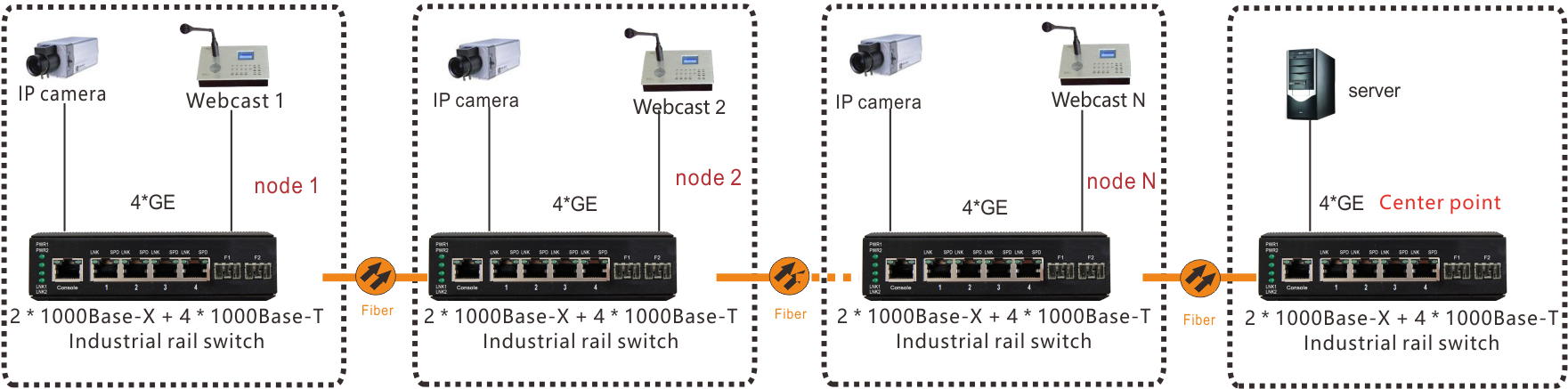

    Application Scheme
