    Industrial grade 4GE Fiber Media Converter

    Type:FCM-GG4 Message

    Description:Industrial grade 4GE fiber Media Converter，Working temperature -40 ℃ ~ + 85 ℃，IP40 enclosure protection rating。

    Product Description
      This series of products are industrial grade 4 port 1000Base-T to 1000Base-FX conversion is mainly used for the optical fiber, optical fiber network distance (20/40/60/80/100 km) transmission. This product offers 1* 1000Base-X, 2 Gigabit Ethernet port, and share the hundreds of 1000M bandwidth, the bandwidth of each channel can be set by Console (Ethernet interface can support VLAN divided into exchange,), namely Logic Isolation; 1 Console port. Has the alarm function, the operation is stable and reliable, low power consumption, high integration, small size.
    Functional Properties
    Ø Industrial Ethernet series, designed for harsh industrial environments
    Ø Device provides four Gigabit Ethernet ports, and share 1000M of bandwidth,;
    Ø Electrical connector (RJ45 connector) to support 10/100/1000M adaptive, full / half duplex mode, MDI / MDI-X auto-detect
    Ø Optical interface supports dual-fiber multi-mode, dual-fiber single-mode, single-mode single fiber three kinds of optical fiber transmission modes, SC / ST / FC interface, optional
    Ø VLAN support the transmission of long packets can support IEEE802.1Q protocol products matching switches used to support up to 10240 byte Ethernet packets;
    Ø Support a wide range of AC and DC input
    Ø Support internal isolation, redundant dual power inputs
    Ø Power Support overload protection, anti-reverse protection
    Ø Meet industry four electromagnetic compatibility requirements
    Ø Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.
    Ø Fanless cooling efficiency, reduce repair time
    Ø IP40 enclosure protection rating, can withstand the test of harsh environments

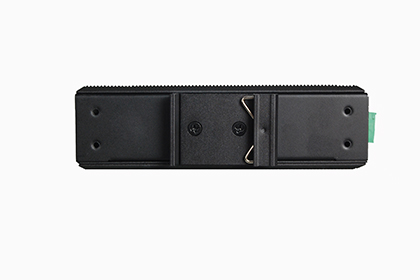

    Ø Rail or wall mounting
    Ø Wide temperature range: Operating temperature -40 ℃ ~ + 85 ℃
    Ø All models are tested by 100% roast machine, Warranty: 5 years
    Technical Parameters
    u Fiber
    Multi-mode Fiber
    50/125um, 62.5/125um,
    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)
    Wave Length: 820nm
    Transmitting power: -12dBm (Min) ~-9dBm (Max)
    Receiver sensitivity: -28dBm (Min)
    Link budget: 16dBm
    Single-mode Fiber
    8/125um, 9/125um
    Maximum transmission distance: 40Km
    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm
    u Ethernet interface(10/100/1000M)
    Interface rate: 10/100/1000 Mbps, half/full duplex auto-negotiation
    Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096
    Connector: RJ45, support Auto-MDIX
    u Working environment
    Working temperature: -40°C ~ 85°C
    Working Humidity: 5%~95 % (no condensation)
    Storage temperature: -40°C ~ 100°C
    Storage Humidity: 5%~95 % (no condensation)
    Application Scheme
