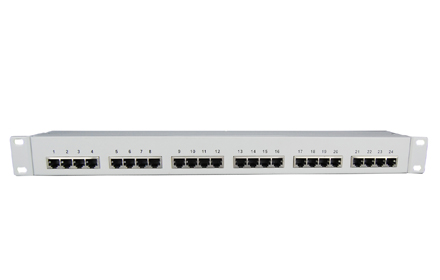

    24 E1 75/120(BNC/RJ45)Impedance Converter

    Type:FCCZ-E34-BNC Message

    Description:24 * 75 ohm E1， BNC interface into 120 ohm E1 interface

    Product Description
             24xE1 Impedance Converter Provide 24 channel G.703 75(BNC) to 120Ω(RJ45) Converter ,not need power;
    Functional Properties
    Ø E1 75/120 Interface level conforms to the ITU-T G.703 level standard template;
    Ø 75 and 120 ohm impedance two-way signal conversion, easy to use
    Ø Without external power supply
    Technical Parameters

    u  E1 Interface
         E1 interface protocol: ITU-T G.703,
         Interface Rate:      2048Kbps±50ppm
         Interface Code:   HDB3;
         Impedance:   75Ω (unbalance BNC), 120Ω (balance RJ45);

    u  Working environment

        Working temperature: -40°C ~ 80°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 85°C
        Storage Humidity:         5%~95 % (no condensation)

        MTBF：        ＞500,000 hours

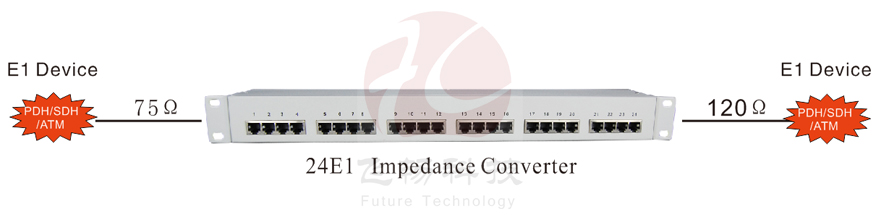

    Application Scheme

     Applications
