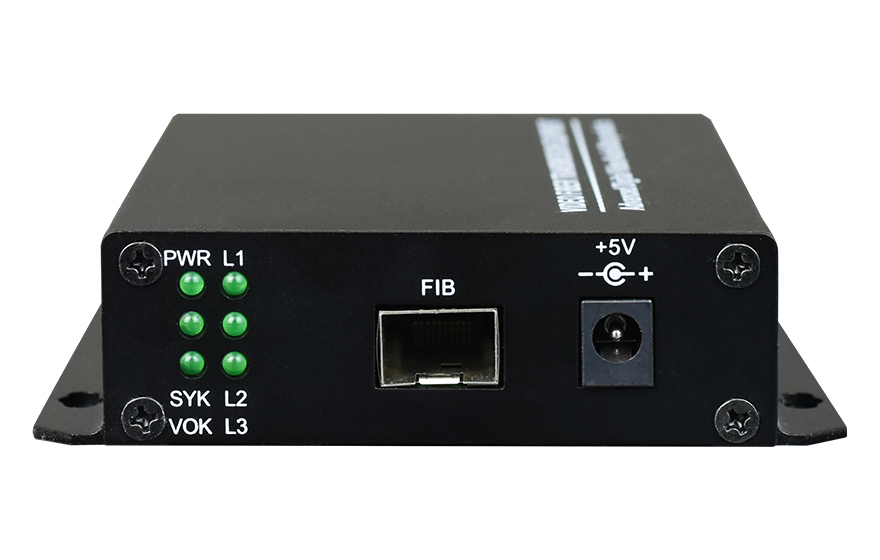

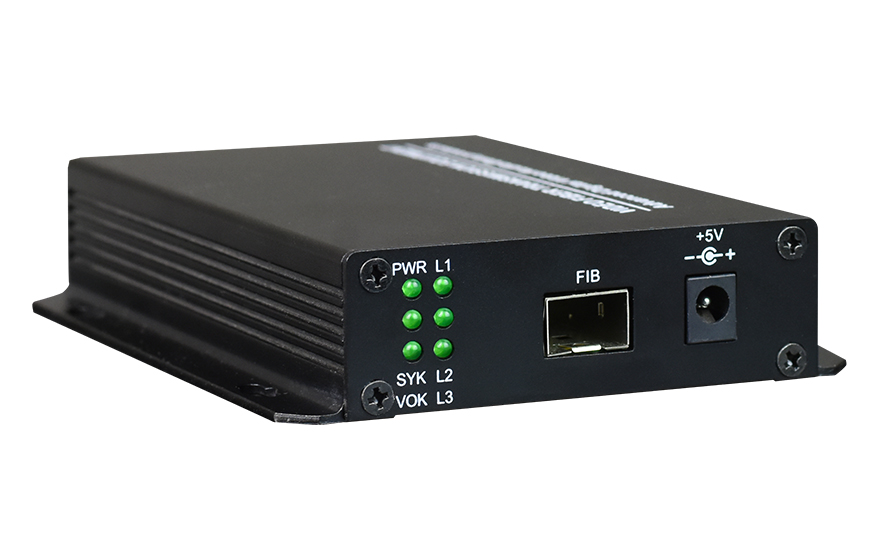

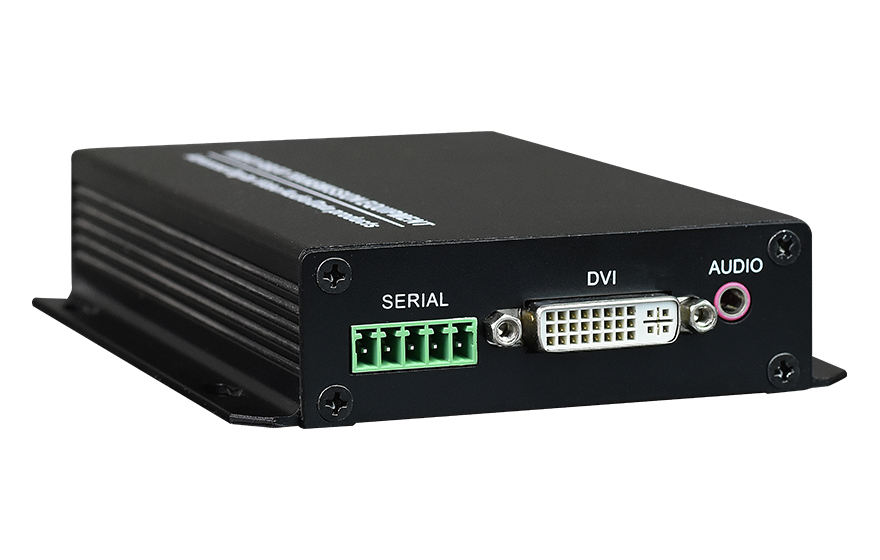

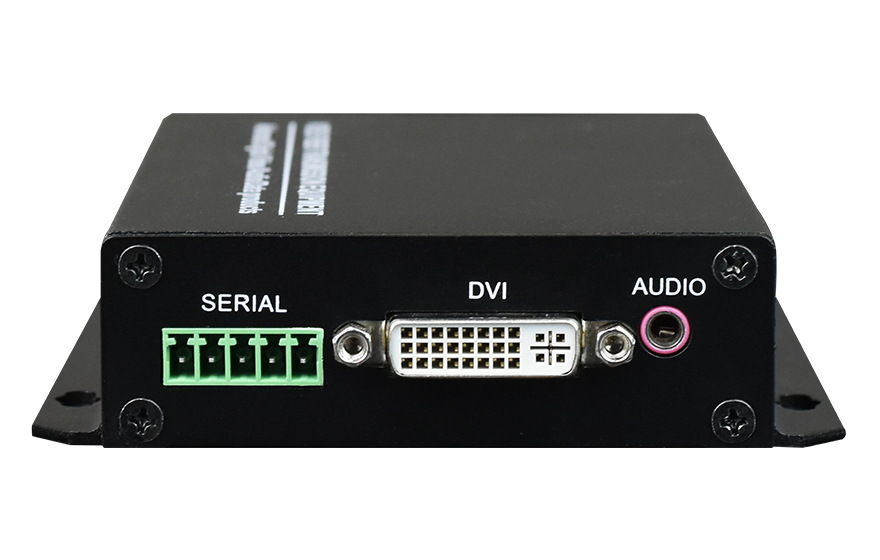

    1 channel Uncompressed 4K DVI Fiber Mux

    Type:FCM-DV1-4k Message

    Description:4K HD DVI optical transceiver supports 4K resolution and 10G high-speed photoelectric conversion transmission. It is actually a single fiber to extend the DVI signal speaker microphones RS232 etc.

    Product Description
            4K HD DVI optical transceiver supports 4K resolution and 10G high-speed photoelectric conversion transmission. It is actually a single fiber to extend the DVI signal speaker microphones RS232 etc. EDID real-time backhaul support to transmit RS232 serial port signal used for communication with LCD screen camera gimbal and can also be used as long-distance transmission of touch screen. Low energy consumption long distance plug and play strong compatibility can achieve more accurate display.
    Functional Properties
    ◆ All digital no compression high-definition fiber transmission;
    ◆ 10G optical fiber transmission rate truly transparent transmission without compression and delay;
    ◆ Support DVI-D video signal transmission the highest resolution: 4096 × 2160 @ 30HZ;
    ◆ EDID can be reversed to support HDCP content protection;
    ◆ Automatically identify and configure various display modes;
    ◆ With independent analog audio or RS232 / 422/485 serial data;
    ◆ DVI interface has built-in ESD protection circuit which can effectively prevent static electricity loss;
    ◆ On-site installation: simple and convenient plug and play no setting required;
    ◆ 300 meters of multimode fiber 10 ~ 80KM long distance transmission of single mode fiber;
    ◆ The aluminum alloy oxygen pole oxidation shell is suitable for severe industrial environments such as extremely high temperature and extremely low temperature;
    ◆ Full surface mount technology and high reliability;
    ◆ No software setting required support plug and play function support hot swap.
    Technical Parameters
    ◆ Fiber
    Fiber: single fiber double fiber
    Fiber interface: LC
    Wavelength: 850nm / 1310nm multimode; 1310nm / 1550nm single mode
    Transmission distance: 10 ~ 80Km
    Typical transmit power:
    Single mode 1310 / 1550nm: ≥-9dBm
    Multimode 850nm: -18dBm
    Multimode 1310nm: -25dBm
    Receiving sensitivity range: -33dBm ~-40dBm
    ◆ DVI Port

    name description
    video interface DVI-D female
      standard DVI 1.0
      Pixel bandwidth 340MHz
      Resolution 800x600P60
        1024x768P60
        1280x800P60
        1280x1024P60
        1360x768P60
        1366x768P60
        1400x1050P60
        1440x900P60
        1600x900P60
        1600x1200P60
        1680x1050P60
        1280x720P50
        1280x720P60
        1920x1080P24
        1920x1080P25
        1920x1080P30
        1920x1080P50
        1920x1080P60
        1920x1080I60
        1920x1080I50
        1920x1200P60
        3840x2160P30

    ◆ Electric and mechanic feature
    System power:     AC180V ~260V;DC –48V;DC +24V
    Power consumption: ≤10W
    ◆ Working environment
    Working temperature:-10℃—+60℃
    Storage temperature: -40℃—+85℃
    Working Humidity:0%—95%(no condensation)
    MTBF: >100000 hour

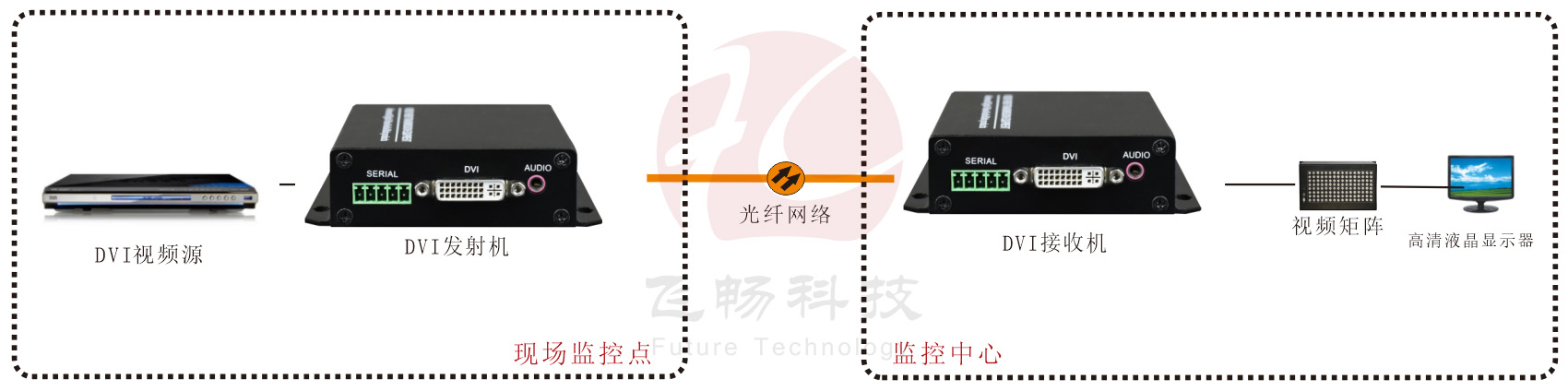

    Application Scheme
    1 channel Uncompressed 4K DVI Fiber Mux
