    POE 1*FE(802.3af) Fiber Media Converter

    Type:POE2001-af Message

    Description:1 * FE fiber optic transceivers,802.3af POE function,Output power 15.4W

    Product Description
                  This series of products are IEEE802.3 Ethernet media converter, can realize transformation between 1 10/100Base-T twisted pair and 100Base-FX fiber optic medium or extension of the network transmission, mainly used for fiber optic network distance (20/40/60/80/120 km) transmission.
                   Ethernet port to provide IEEE802.3af power supply function, supported by the wireless access point 5 Ethernet cable (AP) power supply or IP phoness and other devices.
    Functional Properties
    Ø automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
    Ø device provides an Ethernet port, an Ethernet optical port;
    Ø PSE power company for Ti chip, high stability;
    Ø Ethernet port supports standard IEEE802.3af Power;
    Ø Ethernet port maximum power 15.4W;
    Ø support full and half duplex network communication, with auto-negotiation capability;

    Ø VLAN support the transmission of long packets can support IEEE802.10 protocol products matching

          switches used to support up to 1600-byte Ethernet packets;


    Technical Parameters

     u  Ethernet UTP Interface

        Interface rate:              10/100 M, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u   Optical Ethernet interface

        Wave Length:          1310nm, 1550nm

        Interface rate:              100 M, half/full duplex

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  FC/SC

        Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

       Transmission distance may also be limited by fiber optic bandwidth.

    u Ethernet POE characteristics
        PoE standard: IEEE 802.3af (port output power 15.4W)
        PoE type: the end of cross connection (optional for mid span)

        PoE port: port output power of 15.4W (IEEE802.3af)
        PoE: 1/2+, 3/6- wire line (optional for 4/5+, 7/8- line)

    u   Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size :       136X131X31mm( WX DXH))

       Piece Weight: 1KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

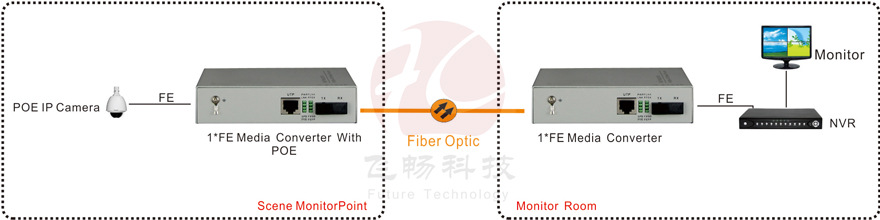

    Application Scheme
