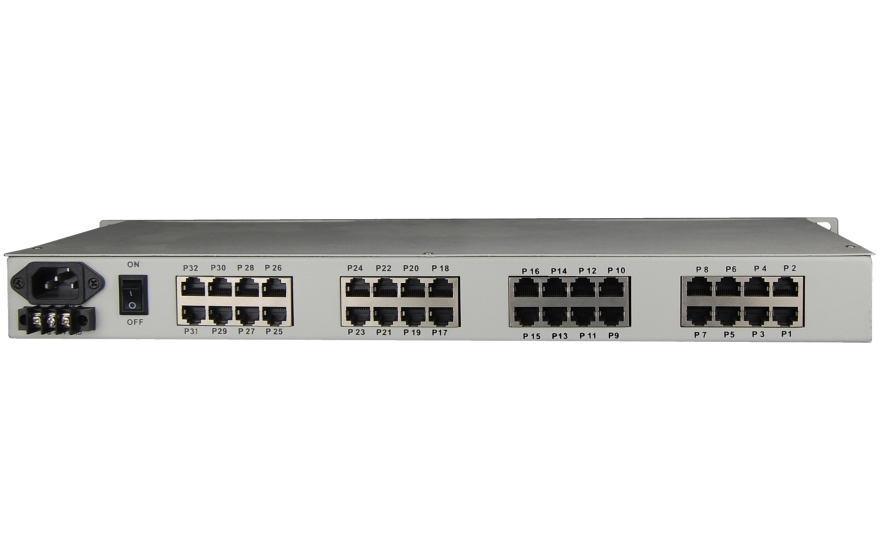

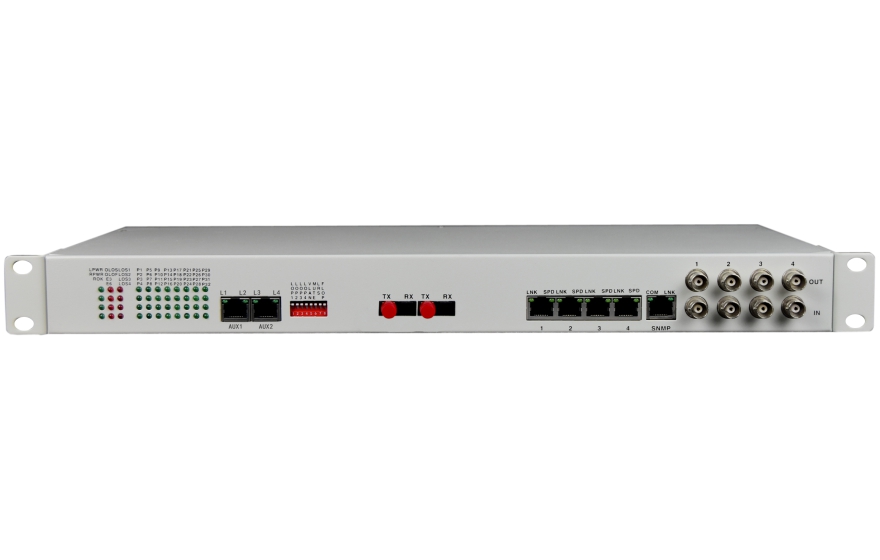

    Fiber-32Voice + 4E1 + 4GE + 4*Serial Multiplexer

    Type:FCP-O32E4G4R4/FCP-S32E4G4R4 Message

    Description:The Equipment provides 32*Voice, 1~4E1 interface, 4*10/100/1000M Gigabit Ethernet interface (Wire speed 1000M), and four extended service interfaces. 4*GE interface for the Switch port, can support VLAN division. 4 expansion service interfa

    Product Description
      The Equipment provides 32*Voice, 1~4E1 interface, 4*10/100/1000M Gigabit Ethernet interface (Wire speed 1000M), and four extended service interfaces. 4*GE interface for the Switch port, can support VLAN division. 4 expansion service interface can be used as RS232/RS485/RS422 asynchronous data /TTL signal/Dry Contact signal and other transmission channels, the application is very flexible.
    Functional Properties
    ◆ Based on independent intellectual property rights of integrated circuits;
    ◆ Equipment to provide the main optical fiber interface and backup fiber interface,dual optical port backup function to ensure that business never interrupted;
    ◆ E1 interface in line with ITU-T G.703 recommendations, the use of all-digital clock recoveryand smooth phase-locked technology;
    ◆ Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phones interface,FXO port plug into PBX,FXS port is connected to the user's telephones;
    ◆ Voice FXO/FXS access, support for caller ID / reverse polarity billing / fax function;
    ◆ Both sides of the device support FXO+FXS hybrid access;

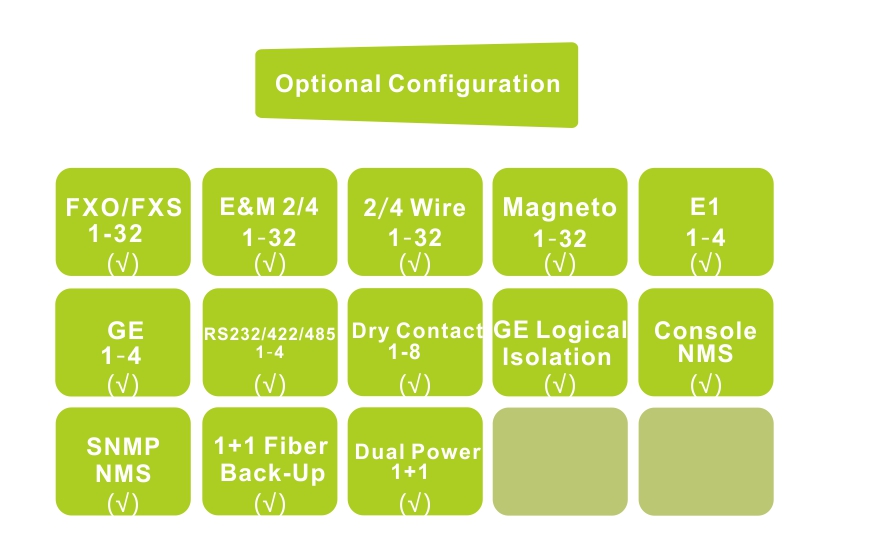

    ◆ Provide 4 expansion interface, you can extend 1 ~ 4 asynchronous data, such as RS232/RS485/RS422/TTL, etc .; or 1 to 8 dry contact;
    ◆ Gigabit Ethernet bandwidth for the wire speed 1000M, interface 10/100/1000M, full/half duplex fully adaptive, support VLAN division;
    ◆ 4 Gigabit Ethernet interface for the Switch port, can also be divided into VLAN, can be set to 4 channel logic isolation;
    ◆ Each Ethernet port supports Auto-MDIX (cross / direct line adaptation);
    ◆ No relay transmission distance of up to 2 to 100 km;
    ◆ A variety of power supply options: AC220V, DC-48V/DC24V, etc .; support AC+DC; AC+AC; DC+DC and other dual power backup mode;
    ◆ Supports Console network management and independent SNMP network management mode;
    ◆ Telephones/Ethernet/Serial interface with lightning protection, lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs, open peak output voltage 6KV standard;
    Technical Parameters

      Fiber

             Multi-mode Fiber

        50/125um 62.5/125um

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

      Ethernet interface(100/100M)

        Interface rate:              10/100 Mbps half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

       MAC Address Capability: 4096

        Connector:                  RJ45 support Auto-MDIX

      FXS phones Interface

        Ring voltage: 75V

        Ring frequency: 25HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

      FXO Switch Interface

        Ring detect voltage: 35V

        Ring detection frequency: 17HZ-60HZ

        Two-line Impedance: 600 Ohm (pick up)

        Return loss: 40 dB

      EM 2/4 Line

        AD: 0dB

        DA: -3.5dB

        Two/Four-line Impedance: 600 Ohm

        Return loss: 20 dB

      Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

      Dimension

        Product Size:         216X140X31mm(WXDXH)

           Piece Weight :    1KG

      Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

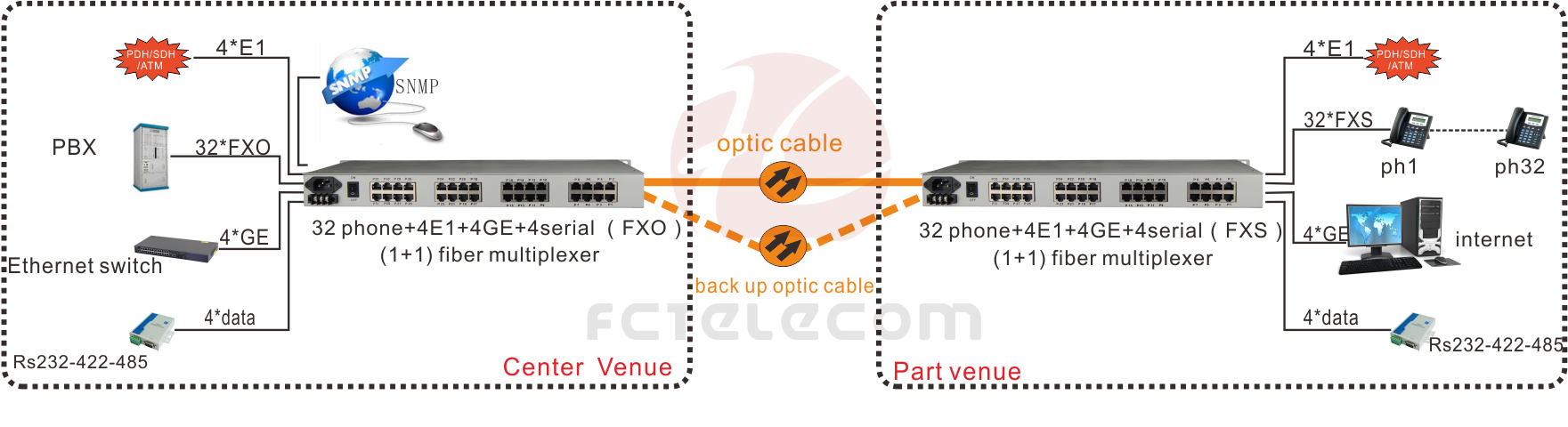

    Application Scheme
