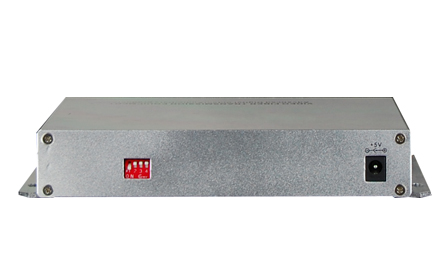

    16 Chanel Cascaded Video Fiber Transceiver

    Type:FCVJ16-V1D1T Message

    Description:16 node video, Node can simultaneously Transmission 2*video and RS485 data

    Product Description
                 The Series Digital Video Optical digital video encoding and Gigabit fiber optic transmission technology, will be implemented in a core fiber video, audio, data, and associated transmission switch rating.
                 The products are optical node machines and optical receiver, node machine can simultaneously transmit two-way video and a way forward RS485 data, the receiver can receive up to 16 channels of video and one-way RS485 data link up to a core fiber series with 16 nodes.

    Functional Properties

    Ø Complete digital optical fiber transmission platform, same platform multi-service flexible configuration;

    Ø Provide General desktop, Mini desktop, insert-card Rack;
    Ø Based on self –copyright ASIC;
    Ø   Can detect the remote device that is power off or broken fiber when it is matt
    Ø   Compatible PAL/NTSC/SECAM system, studio-level transmission quality
    Ø   Provide bi-directional asynchronous data (Forward Direction and Reverse Direction)
    Ø   Asynchronous data, transmit rate more than 110-115.200Kbps
    Ø   Asynchronous data can be RS232/RS485/RS422/Manchester code

    Ø   Data interface and video interface provide three levels lightning-protection function，which can reach the ITU-T K.21 (10/700μs),

          CM (6KV), Impedance (40 Ω) test;





    Technical Parameters

    u  Fiber

         Connector:    FC/ ST/PC

         Wave length:  850nm/1310nm/1550nm
         Transmission distance:  multi-mode 0-2km, single-mode 0-25km, 0-60km, 0-120km     ;
         Transmitting power: better than -6dB
         Receiver sensitivity: better than -18dB
         Optical dynamic range: 12dB
         Optical maximum loss: 12dB
         Fiber: single-mode/multi-mode fiber, single fiber
         Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and

         patch panel. Transmission distance may also be limited by fiber optic bandwidth.

    u  Video interface

        Video Bandwidth:   5Hz~10Hz
        Rate input & output Level:  1Vp-p
        Sampling Frequency:  16.4M (typical value)
        Signal Impedance:  75 Ω
        Signal Interface:  BNC/PAL/NTSC/SECAM
        Differential Gain (DG):  <1.3 %( typical value)
        Differential Phase (DP):  <1.3° (typical value)
        Signal Noise Ratio (SNR):  63dB

    u   Date interface

        Data Interface:  RS-232、RS-422、RS-485、TTL
        Data Mode:  NRZ、Manchester、Bi-phase
        Data Rate:  110bps-115.200Kbps
        Interface Port:  RJ45

    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤5W

    u   Dimension

        Mini Type：           216（width）X140（depth）X31（height）mm
        19 inch 1U：          483（width）X138（depth）X44（height）mm

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

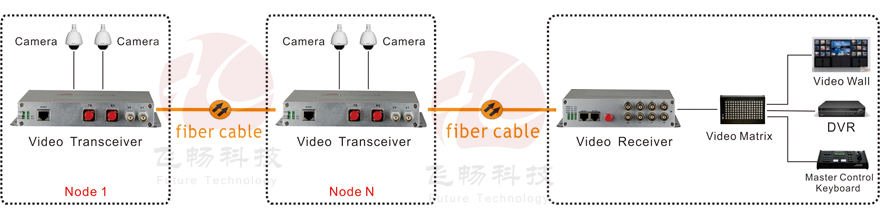

    Application Scheme

    Applications
