    Products center

    FE Fiber Modem (Bandwidth 2M)

    Type:FCP-F Message

    Description:FE fiber transmission, with the Ethernet to E1-E1 fiber optic MODEM- this device into a 3 point network connection

    Product Description
                   This device provides one fiber interface and one Ethernet interface to achieve 10/100Base-T Ethernet data transmission on fiber channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

    Functional Properties
    Ø Based on self -copyright  IC
    Ø The device can manage the remote device condition , OAM management data did not take up user’s timeslot
    Ø The local device can forced the remote device rate follow it
    Ø The Ethernet interface supports jumbo frames (2036 Bytes);
    Ø Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering
    Ø Optical Ethernet Interface supports 100M, full duplex
    Ø 1Channel 10M/100M Ethernet interface can isolate each other to realize communication independently
    Ø Have Ethernet monitor self-reset function, the equipment will not dead
    Ø The local device can forced the remote device rate follow it(when the device is unframed mode, that is invalid)
    Ø Support SNMP Network Management
    Ø The device supports unframed mode (2048K) set, it can the remote device condition when unframed
    Ø Ethernet interface supports 10M/100M, half/full duplex auto- adaptable, support VLAN
    Ø Ethernet interface supports AUTO-MDIX (crossed line and straightly connected line self-adaptable )
    Ø Can form the structure: ETH+E1 (A)---E1 Optical Fiber Modem(B)---Ethernet Fiber Modem (C)

    Technical Parameters

    u  Fiber

             Multi-mode Fiber

        50/125um, 62.5/125um,

        Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

        Transmitting power: -12dBm (Min) ~-9dBm (Max)

        Receiver sensitivity: -28dBm (Min)

        Link budget: 16dBm

            Single-mode Fiber

        8/125um, 9/125um

        Maximum transmission distance: 40Km

        Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

        Wave Length: 1310nm

        Transmitting power: -9dBm (Min) ~-8dBm (Max)

        Receiver sensitivity: -27dBm (Min)

        Link budget: 18dBm

    u  Ethernet interface(100/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

       MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX


    u   Power

        Power supply: AC180V ~ 260V;DC –48V;DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size:         216X140X31mm(WXDXH)

        Simple packaging:  274X193X84mm(WXDXH)

        Piece Weight :      1.2KG

     u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

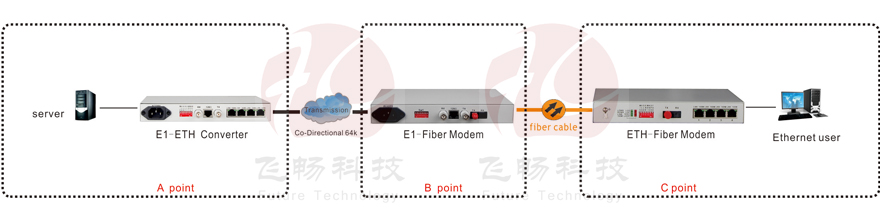

    Application Scheme

    Applications
