    Products center

    Phy- Isolated 2* GE+2*GE Fiber Media Converter

    Type:FCMG-F4pN Message

    Description:This series of products with four Ethernet Ethernet GE port 12 and 34 for GE port to achieve physical isolation respectively to achieve two-way 1000M and 1000M of bandwidth Fiber distance (20/40/60/80/100 km) the total bandwidth of

    Product Description
         This series of products with four Ethernet Ethernet GE port 12 and 34 for GE port to achieve physical isolation respectively to achieve two-way 1000M and 1000M of bandwidth Fiber distance (20/40/60/80/100 km) the total bandwidth of two-way 2000M.
        Two Ethernet electrical ports have their own independent Gigabit and Fast bandwidth through a fiber optic transmission the Ethernet signal received by the peer is also completely independent without disturbing each other that is physical isolation;
        The device is based on an Ethernet switch chip + FPGA solution with remote OAM frame management functions and supports the Console/Web / Independent SNMP network management.
    Functional Properties
    ◆ Industrial Ethernet series designed for harsh industrial environments
    ◆ The device provides 4 Ethernet electrical ports one 2.5G optical port an optional Console/SNMP  port;
    ◆ Can provide two physical isolation wire speed 1000M and wire speed 1000M Ethernet path optical interface bandwidth 2.5G 12 port for the GE switch 34 port for GE switching 12 and 34 physical isolation; 12 port can be set to VLAN isolation 34 port is the same;
    ◆ Optical interface supports three optical fiber transmission modes of multimode dual fiber single mode dual fiber single mode single fiber SC / ST / FC / LC interface optional;
    ◆ With broadcast storm protection balance of traffic isolation and conflict detection errors and crash self-reset and other functions suitable for video transmission and other large data applications;
    ◆ Supports the transmission of long data packets in VLAN and can be used with switch products that support IEEE802.1Q protocol to support Ethernet packets up to 10K bytes.
    ◆ The device is an Ethernet switch chip + FPGA solution with remote OAM management frame and can be interconnected with a 2U card with SNMP network management. SNMP software can manage this device. Support Console (CLI)/WEB/ independent SNMP network management;
    ◆ The NMS can view and manage the interface status and settings of the local Ethernet interface and the remote Ethernet interface in real time. The device can detect the power-off of the Ethernet interface when the optical signal is lost or the fiber fails.
    ◆ Support a wide range of 9-55V AC and DC power input;
    ◆ Support internal isolation redundant dual power input;
    ◆ Power supply support overload protection anti-reverse protection
    ◆ Meet the industrial four electromagnetic compatibility requirements;
    ◆ Super lightning protection function: lightning protection anti-induced high voltage anti-surge and so on;
    ◆ Fanless efficient cooling reduce repair time;
    ◆ Anodized aluminum housing IP40 degree of protection able to withstand the harsh environment test;

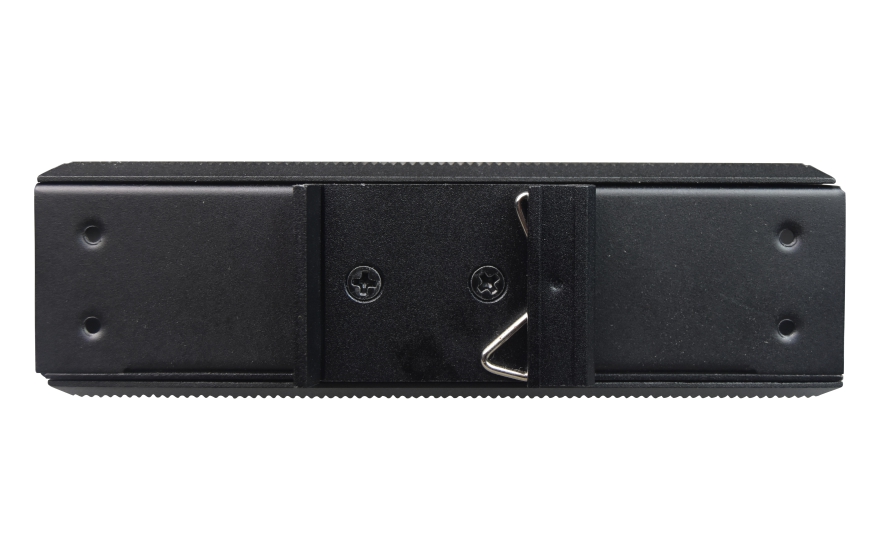

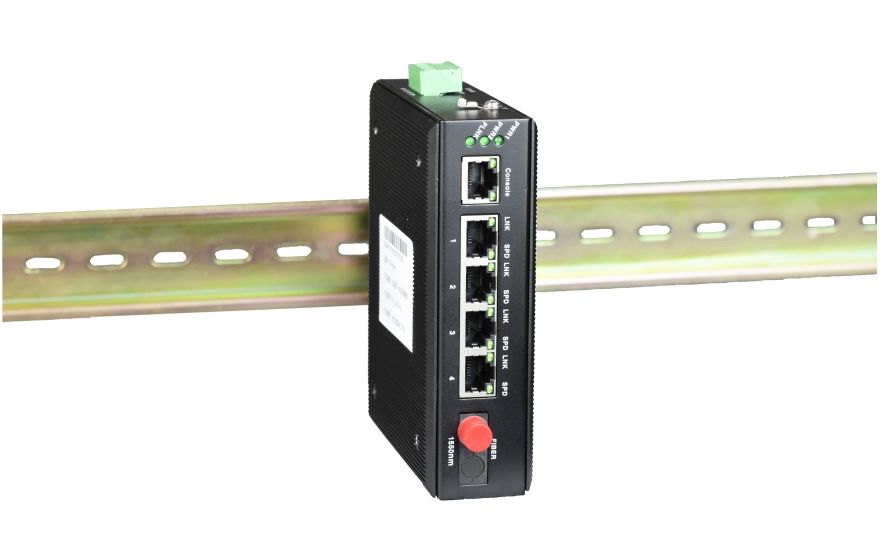

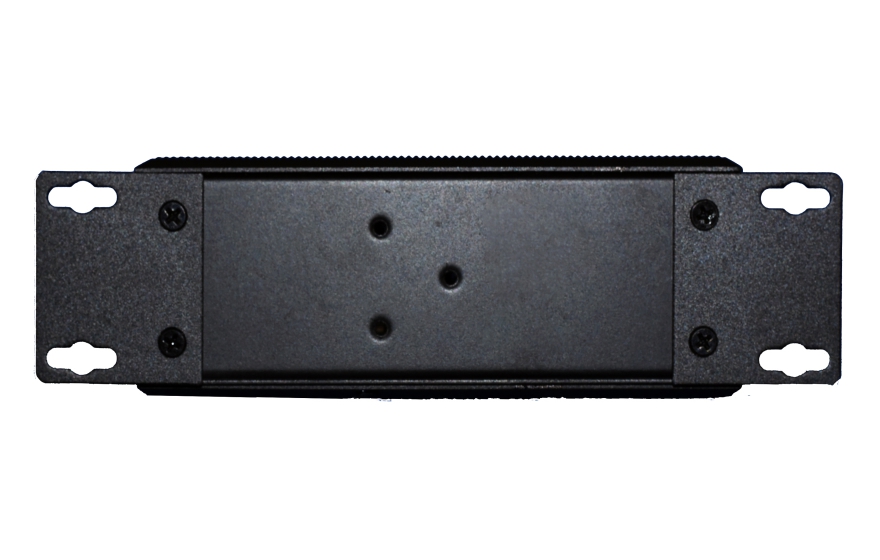

    ◆ Rail or wall-mounted
    ◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
    ◆ All models are 100% baked machine test the warranty period: 5 years;
    Technical Parameters
    ◆  E1 Interface
        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;
        E1 Impedance:             75Ω (unbalance) 120Ω (balance);
        Jitter tolerance:            In accord with protocol G.742 and G.823
        Allowed Attenuation:   0~6dBm
    ◆  Ethernet interface (10/100M)
        Interface rate:              10/100 Mbps half/full duplex auto-negotiation
        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
        MAC Address Capability: 4096
        Connector:                  RJ45 support Auto-MDIX
    ◆  Power
        Power supply: AC180V ~ 260V;DC –48V;DC +24V
        Power consumption: ≤10W
    ◆  Dimension
        Product Size: Mini Type    216X140X31mm(WXDXH)
                Simple packaging:   274X193X84mm(WXDXH)
                Piece Weight :    1.25KG
    ◆  Working environment
        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)
        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

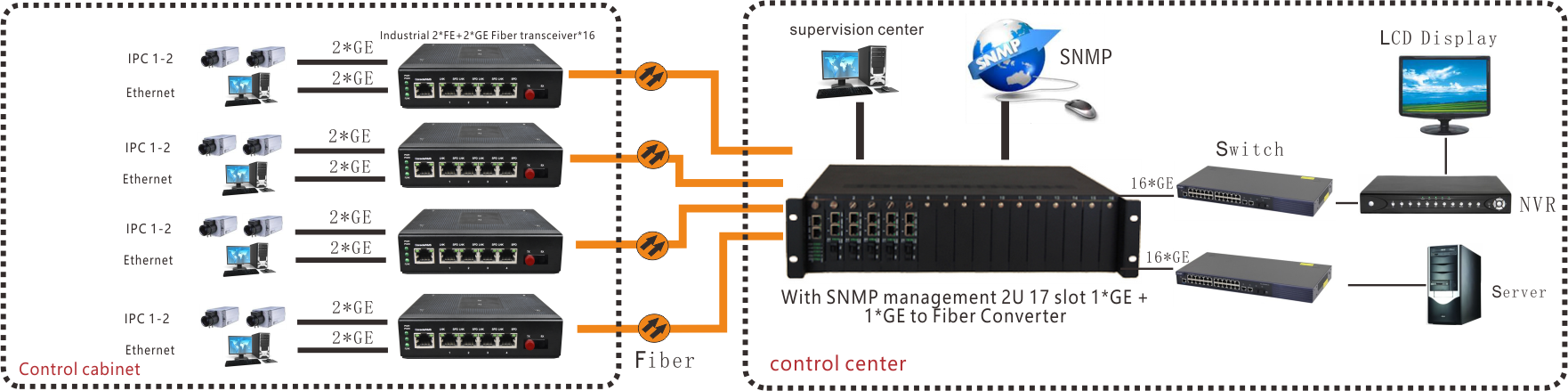

    Application Scheme
