    Products center

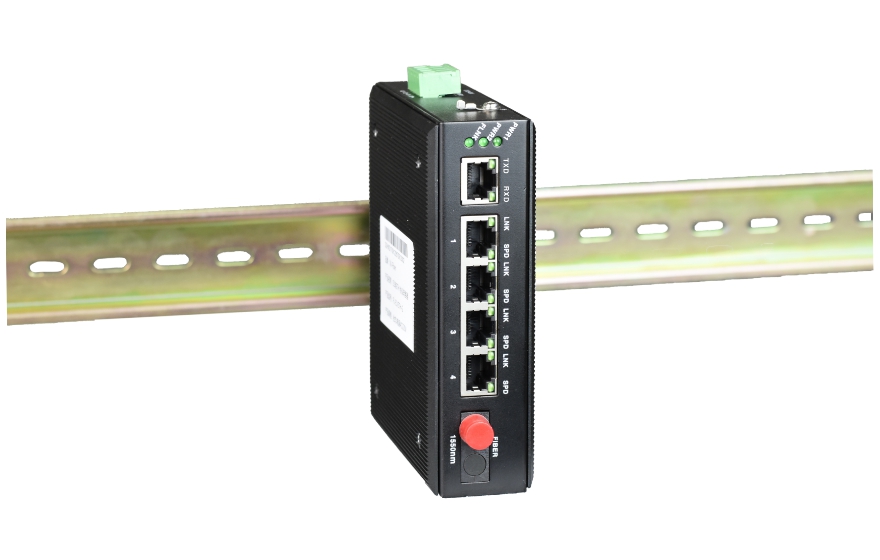

    Managed Industrial 4*FE+1*Serial Switch

    Type:FCMG-F4R1N Message

    Description:This series of products is the Ethernet IEEE802.3 media converter to achieve a road 100 megahertz light to turn 4*FE+1*RS232/422/485 serial port support (20/40/60/80/120 km )transmission. The device is based on the Ethernet switching chip

    Product Description
        This series of products is the Ethernet IEEE802.3 media converter to achieve a road 100 megahertz light to turn 4*FE+1*RS232/422/485 serial port support (20/40/60/80/120 km )transmission.
    The device is based on the Ethernet switching chip + FPGA program with a strong local and remote management functions;
    Functional Properties
    ◆ Industrial rail design designed for harsh and harsh industrial environments;
     Equipment to provide 4*FE 1*RS232/422/485 serial interface 1 channel 100M optical Ethernet interface the total transmission bandwidth for the wire speed 100M;
     Electrical port 10 / 100Mbps adaptive electrical port MDI / MDI-X adaptive without manual adjustment;
     Switch built-in 512Kbit MP-SSRAM high-speed memory non-blocking design a crash from the reset function suitable for video transmission and other large traffic data applications;
     based on FPGA + ARM design with a strong local and remote management functions can be connected with the 2U card device you can configure the SNMP network management card management;
     Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch to use the product to support up to 10K bytes of Ethernet packets;
     With broadcast storm protection balance flow isolation conflict and detection errors and other functions;
     Ethernet interface with serial data with lightning protection lightning protection to GB / T17626.5 (IEC61000-4-5) short circuit current wave 10/700μs open peak output voltage 6KV standard;
     Provide 1*RS232/485/422 interface optional RS232/485/422 channel can be transmitted from 0-115200 baud rate serial data;
     The network management real-time view and management of the local end and the remote Ethernet interface status and settings; equipment with power-down detection function can detect when the optical signal is lost when the peer device power or fiber unreasonable;
     Support a wide range of 9-55V AC and DC power input;
     Support internal isolation redundant dual power input;
     Power supply support overload protection anti-reverse protection;
     Meet the requirements of industrial four electromagnetic compatibility;
     Super lightning protection function: anti-lightning anti-sensor high pressure anti-surge etc .;
     No fan efficient cooling reduce repair time;
     Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

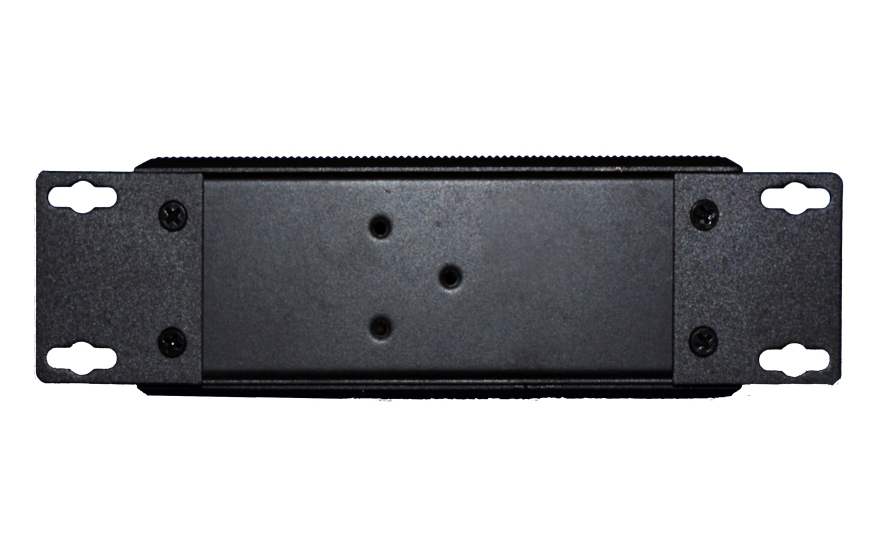

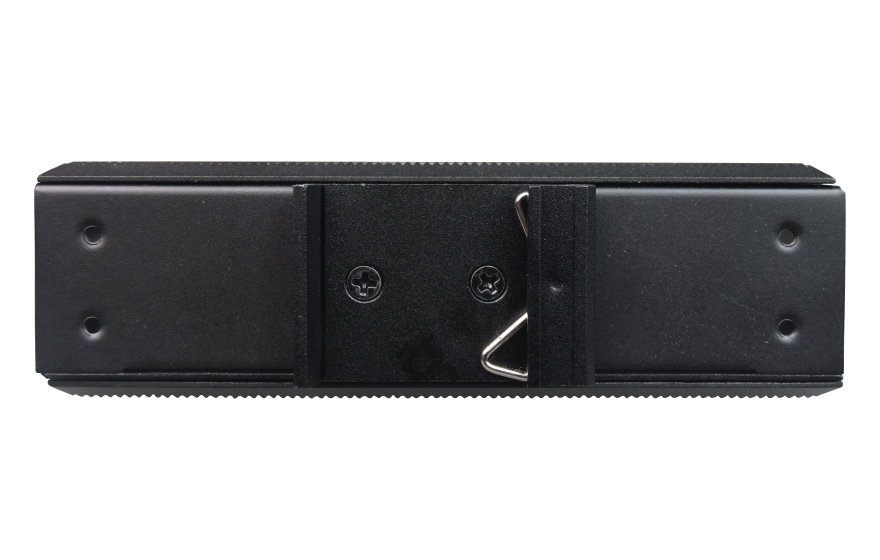

     Rail or wall mounted;
     Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
     All models are tested by 100% roasting machine the warranty period: 5 years;
    Technical Parameters
    ◆  E1 Interface
        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;
        E1 Impedance:             75Ω (unbalance) 120Ω (balance);
        Jitter tolerance:            In accord with protocol G.742 and G.823
        Allowed Attenuation:   0~6dBm
    ◆  Ethernet interface (10/100M)
        Interface rate:              10/100 Mbps half/full duplex auto-negotiation
        Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
        MAC Address Capability: 4096
        Connector:                  RJ45 support Auto-MDIX
    ◆  Power
        Power supply: AC180V ~ 260V;DC –48V;DC +24V
        Power consumption: ≤10W
    ◆  Dimension
        Product Size: Mini Type    216X140X31mm(WXDXH)
                Simple packaging:   274X193X84mm(WXDXH)
                Piece Weight :    1.25KG
    ◆  Working environment
        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)
        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)
    Application Scheme
